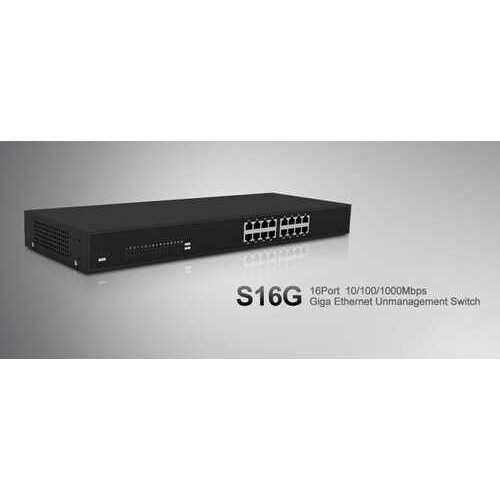

16 ports 10/100/1000Mbps Switch TOTOLINK S16G

- 16 ports 10/100/1000Mbps, Auto negotiation (MDI/MDIX)

- Wire-speed performance, 19' rackmount type

- Support per-port bandwidth control

- Support flow control, Nway auto-negotiation for any port

- MAC address auto-leading and auto AGING

- Store and forward

- Support PHY register read/write access

Model

S16G - Gigabit Ethernet Unmanagement Switch 16port

Standard

IEEE802.3,IEEE802.3u,IEEE802.3ab IEEE 802.3x

Interface

16 10/100/1000M auto-negotiation RJ45 Ports (Auto MDI/MDIX)

MAC Address Learning

Automatically learning, automatically update

Network Media

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100Base-Tx: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

Frame Filtering

10Mbps: 14880pps, 100Mbps: 148800pps, 1000Mbps: 1488000pps

LED indicators

Power, Link/Act

Transfer Method

Store-and-Forward

MAC Address

8K

Backup Bandwidth

32Gbps

- Công nghệ Hàn Quốc, lắp ráp tại Trung Quốc.

- Bảo hành: 24 tháng.
