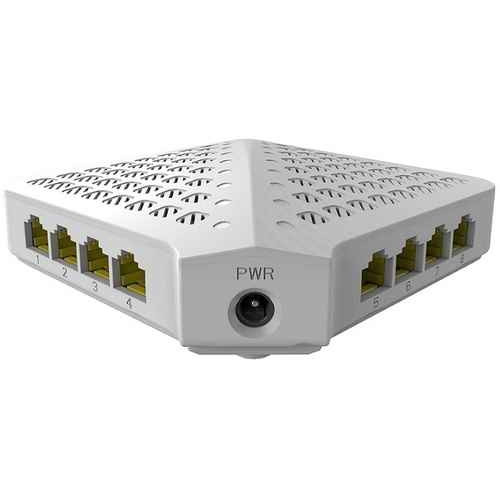

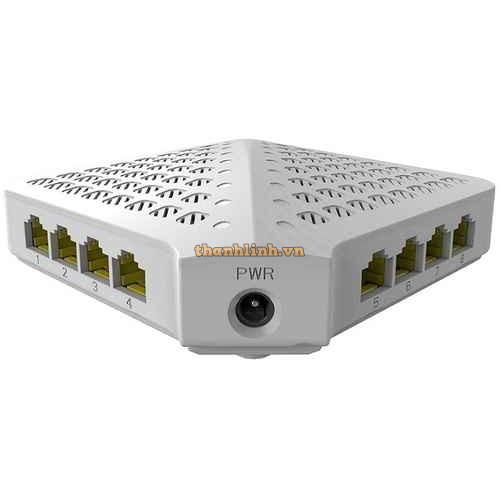

8-port 10/100/1000Mbps Switch TENDA SG80

-8 port 10/100M RJ45; MDI-MDIX, Plug&Play, tự động dò tìm tốc độ 10/100Mbps.

-Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab Ethernet standards.

-Supports Auto MDI/MDIX on each port.

-Supports NWAY Auto-Negotiation function.

-Provides 8 10/100/1000Mbps Auto-Negotiation RJ-45 ports.

-Supports IEEE802.3x flow control for full-duplex and backpressure flow control for half-duplex.

-Provides up to 10/16Gbps backplane bandwidth and non-blocking line speed forwarding.

-Supports store-and-forward switching method.

-Provides 4K MAC address entries and MAC address self-learning/auto-aging.

-Desktop and mini plastic shell design.

Đặc tính kỹ thuật

Standards IEEE802.3 10Base-T Ethernet, IEEE802.3u 100 Base-TX Fast Ethernet, IEEE802.3ab Gigabit Ethernet, 802.3x Flow control support for full-duplex

Protocol CSMA/CD

Topology Star

Network Cables 10 Base-T: Cat.3 UTP or above, 100 Base-TX: Cat.5 UTP /STP, 1000Base-T: Cat.5, Cat.5e or Cat.6 UTP/STP

Speed 10/100/1000Mbps

TransmissionMethod Store-and-forward

MAC Address Table 4K entries

Packet Filtering/Forwarding Rate 14880pps (10Mbps) per port, 148800pps (100Mbps) per port, 1488000pps (1000Mbps) per port

MAC Address Learning Self-learning, auto-aging

Power External universal power supply

DC Input 9VDC, 600mA

Power Consumption 3.9W

OperatingTemperature 0ºC ~40ºC

StorageTemperature -40ºC ~70ºC

Operating Humidity 10%~90% RH no condensing

Storage Humidity 5%~90% RH no condensing

-Bảo hành: 36 tháng.
