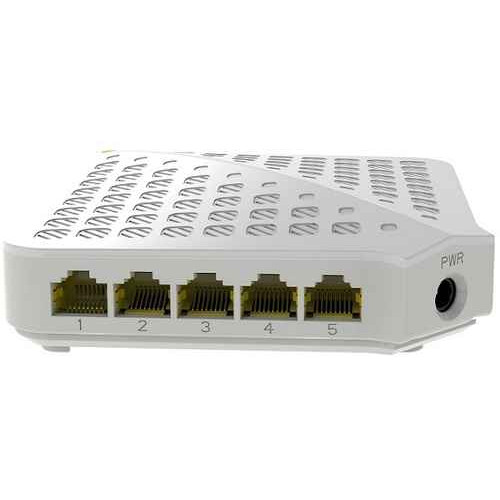

5-port 10/100/1000Mbps Switch TENDA SG50

-Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab Ethernet standards.

-Supports Auto MDI/MDIX on each port.

-Supports NWAY Auto-Negotiation function.

-Provides 5 10/100/1000Mbps Auto-Negotiation RJ-45 ports.

-Supports IEEE802.3x flow control for full-duplex and backpressure flow control for half-duplex.

-Provides up to 10/16Gbps backplane bandwidth and non-blocking line speed forwarding

-Supports store-and-forward switching method

-Provides 4K MAC address entries and MAC address self-learning/auto-aging

-Desktop and mini plastic shell design.

Đặc tính kỹ thuật

Standards IEEE802.3 10Base-T Ethernet

IEEE802.3u 100 Base-TX Fast Ethernet IEEE802.3ab Gigabit Ethernet 802.3x Flow control support for full-duplex

Protocol CSMA/CD

Topology Star

Network Cables 10 Base-T: Cat.3 UTP or above. 100 Base-TX: Cat.5 UTP /STP. 1000Base-T: Cat.5, Cat.5e or Cat.6 UTP/STP

Speed 10/100/1000Mbps

Transmission Method Store-and-forward

MAC Address Table 4K entries

Packet Filtering/ 14880pps (10Mbps) per port

Forwarding Rate 148800pps (100Mbps) per port

MAC AddressLearning 1488000pps (1000Mbps) per port

Self-learning, auto-aging

Power External universal power supply

DC Input 9VDC, 600mA

Power Consumption 2.9W (SG50)

OperatingTemperature 0ºC ~40ºC

StorageTemperature -40ºC ~70ºC

Operating Humidity 10%~90% RH no condensing

Storage Humidity 5%~90% RH no condensing

-Bảo hành: 36 tháng.
