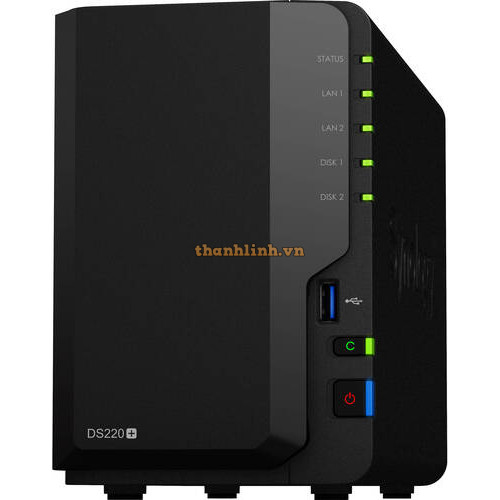

• Thiết bị lưu trữ mạng Synology DS220+

Hardware Specifications

CPU

CPU Model Intel Celeron J4025

CPU Architecture 64-bit

CPU Frequency 2-core 2.0 ( base ) / 2.9 ( burst ) GHz

Hardware Encryption Engine ( AES-NI )

Memory

System Memory 2 GB DDR4 non-ECC

Total Memory Slots 1

Maximum Memory Capacity 6 GB ( 2 GB + 4 GB )

Notes

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays 2

Compatible Drive Type*

3.5″ SATA HDD

2.5″ SATA HDD

2.5″ SATA SSD

Maximum Single Volume Size* 108 TB

Hot Swappable Drive

Notes

“Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

Each internal volume ( may consist of multiple drives ) is expandable up to 108TB.

External Ports

RJ-45 1GbE LAN Port 2 ( with Link Aggregation / Failover support )

USB 3.0 Port 2

USB / SD Copy

File System

Internal Drives

Btrfs

EXT4

External Drives

Btrfs

EXT4

EXT3

FAT

NTFS

HFS+

exFAT*

Notes exFAT Access is purchased separately in Package Center.

Appearance

Size ( Height x Width x Depth ) 165 mm x 108 mm x 232.2 mm

Weight 1.30 kg

Others

System Fan 92 mm x 92 mm x 1 pcs

Fan Speed Mode

Full-Speed Mode

Cool Mode

Quiet Mode

Brightness Adjustable Front LED Indicators

Power Recovery

Noise Level* 19.3 dB ( A )

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter 60 W

AC Input Power Voltage 100 V to 240 V AC

Power Frequency 50/60 Hz , Single Phase

Power Consumption* 14.69 W ( Access ) 4.41 W ( HDD Hibernation )

British Thermal Unit 50.12 BTU/hr ( Access ) 15.05 BTU/hr ( HDD Hibernation )

Notes

Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive ( s ) .

Noise Level Testing Environment : Fully loaded with Seagate 2TB ST2000VN000 hard drive ( s ) in the idle state. Two G.R.A.S. Type 40AE microphones , each set up 1 meter away from the Synology NAS at the front and rear. Background noise : 16.49-17.51 dB ( A ) ; Temperature : 24.25-25.75˚C; Humidity : 58.2-61.8%

Temperature

Operating Temperature 0°C to 40°C ( 32°F to 104°F )

Storage Temperature -20°C to 60°C ( -5°F to 140°F )

Relative Humidity 5% to 95% RH

Certification

EAC

VCCI

CCC

RCM

KC

FCC

CE

BSMI

Warranty

2 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt.

Environment

RoHS Compliant

Packaging Content

Main Unit X 1

Accessory Pack X 1

AC Power Adapter X 1

AC Power Cord X 1

RJ-45 LAN Cable X 2

Quick Installation Guide X 1

Optional Accessories

DDR4 non-ECC SODIMM : D4NESO-2666-4G

2.5″ SATA SSD : SAT5200

VisualStation : VS960HD/VS360HD

Surveillance Device License Pack

Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Không có đánh giá nào cho sản phẩm này.

Viết đánh giá

Lưu ý: HTML is not translated!
    Xấu           Tốt

Thiết bị lưu trữ mạng Synology DS220+

  • Thương hiệu: SYNOLOGY
  • Mã số sản phẩm: DS220+
  • Tình trạng kho: Xin liên hệ
Đơn giá chưa VAT. Phải cộng thuế VAT khi mua hàng
  • 7.800.000 đ
