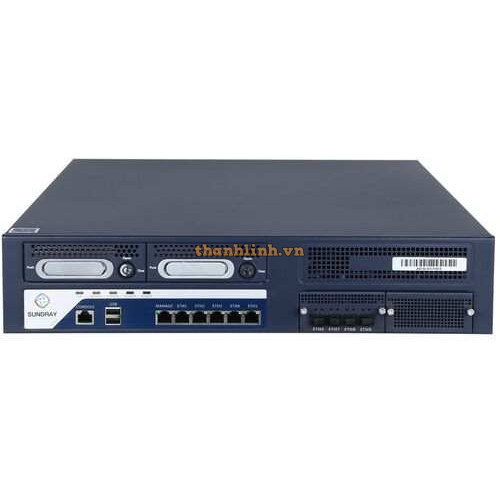

SIC-5030-IPSIP IoT Controller

SIC-5030-IPSIP is an IoT controller independently developed by Sundray Technology specifically for physical security sensing systems. It integrates equipment management, data collection, data presentation, 3D modeling, alarm push, convenient operation and maintenance, and data analysis systems. , supports the perception of physical security status of multiple systems and scenarios such as power systems, environmental systems, fire protection systems, security systems, IT assets, etc., and provides refined data presentation and comprehensive and accurate alarm push to meet users' daily operation and maintenance needs.

SIC-5030-IPSIP IoT controller supports modbus-assci, modbus-rtu, shut, QG, 485, dry contact, wet contact, SNMP and other protocols. The supported interface modes are 485, 232, and switch. Built-in 3000+ sensor library, supports access to UPS, precision air conditioners, and IT equipment; supports centralized management of IoT sensors, such as collection host, variable line sequence collector, temperature and humidity sensor, infrared remote control, infrared human body induction sensor, Online and offline, authorized activation, addition and deletion functions of facial recognition access control and other equipment.

SIC-5030-IPSIP IoT controller has multiple modules and functions such as visual presentation center, intelligent alarm center, mobile operation center, and full-scenario knowledge base. It supports 3D modeling and can be restored one-to-one based on the user's real environment; supports email , SMS, phone, sound and light, APP, voice, WeChat, WeChat Enterprise Account, Alibaba DingTalk, and Cloud Guard. Up to 10 alarm methods allow operation and maintenance personnel to not miss any alarm information; support alarm classification and alarm upgrade , alarm tracking, etc.; supports cabinet-level refined management and is widely used in data centers, branch computer rooms, weak current rooms, archives, warehouses, libraries and other scenarios.

Parameter consultation

Product inquiry

Free trial

Download

SIC-5030-IPSIP IoT Controller

Please fill in the title

Key Features

1. IoT controller, which integrates multiple functions such as device management, IoT strategy, basic operation and maintenance, and data analysis;2. Support Sundray’s full range of IoT terminals and support the expansion of third-party IoT sensors through universal data collectors;3. Support the creation of new IoT strategies based on scenarios, such as custom events, conditions, loops, alarms, inspections, actions, etc.;4. Support the linkage of accessed sensor devices to achieve intelligent control, environmental adjustment, etc. according to pre-defined IoT strategies;5. Support visual large-screen display, including equipment operation, data collection, alarm information, etc., and real-time monitoring of system status;6. Support IoT data statistical analysis, such as customized time periods, group power consumption data, and equipment energy consumption trend analysis;7. Built-in multiple mature subsystem applications, including Spring Silkworm Campus, environmental monitoring, energy-saving control, power safety system, etc.;8. Support the expansion of third-party IoT applications, provide open standard API interfaces, and support docking with third-party platforms and devices.

Technical specifications

model SIC-5030-IPSIP supporting agreement

Modbus;

shut;

General Electric QG;

485 protocol;

wet and dry nodes;

SNMP protocol

Business port

6 * Gigabit Ethernet port

4 * Gigabit optical port

Other interfaces

1 * RJ45 Console port;

2*USB2.0 port

Default number of managed devices

32 Maximum number of managed devices 2000

Input voltage

Rating: 100V~240V AC, 50/60Hz

Maximum: 90V～264V AC, 47/63Hz

Power consumption <210W

Working/storage temperature -10℃～55℃/-40℃～70℃ Working/storage humidity 5%～95% (non-condensing)

harddisk 1TB HDD Product size (unit: mm) 430×600×89
