Item RS6300-50Q-EI-24X
Dimensions 560mm×517mm×110mm
Weight ≤5.4KG
Default ports 24*10G SFP+,24*GE,2*40GE QSFP+
Management port 1*Console Port,1*Manage Port
Redundant Power Redundant AC Power 1+1(Plug-and-Play),Single Power 150w;
Work temperature
Operating/storage
humidity
Work temperature :-5°C~50°C
Storage temperature:-40ºC~70ºC
Work humidity:5%~95% RH
Storage humidity:5%~90% RH
Working Layer L2 & L3
Maximum
Consumption
≤110w
Switch capacity 2.56Tbps/23.04Tbps
Packet forwarding
rate
720Mpps
Access method Support the integration of fat and thin, support intelligent switch and
common switch two working modes, according to different
networking needs, flexible at any time to switch
Switch zero
configuration online
Layer 2 broadcast automatically discovers wireless AC
Configure Static IP Address Layer 3 to discover wireless ACs
DHCP Option 43 Discovers Wireless AC
DNS Domain Name Discovery Wireless AC
One-click
replacement
Replace the faulty device with a one-click in controller
STP Support RRPP Ring Topology and RRPP Multiple Instances
Support MSTP, MRPP, ERPS and so on
Support ERPS Ethernet Ring Protection Protocol (G.8032)
Support MSTP (IEEE 802.1s) protocol
Support BPDU protection, root protection and loopback protection

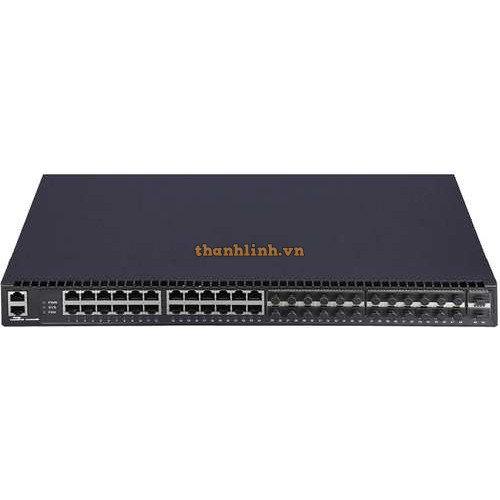

Bộ chia mạng Sundray 48 cổng Gigabit 4 SFP RS6300-50Q-EI-24X
- Thương hiệu: SUNDRAY
- Mã số sản phẩm: RS6300-50Q-EI-24X
- Tình trạng kho: Đặt hàng qua Zalo hoặc Email
-
Xin liên hệ
