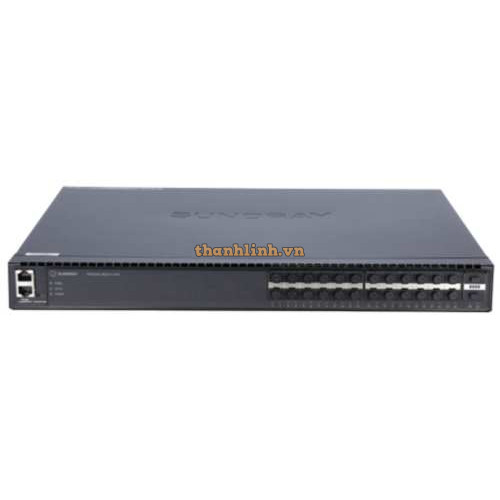

Item RS6300-50Q-EI-24X

Dimensions 560mm×517mm×110mm

Weight ≤5.4KG

Default ports 24*10G SFP+，24*GE，2*40GE QSFP+

Management port 1*Console Port，1*Manage Port

Redundant Power Redundant AC Power 1+1（Plug-and-Play），Single Power 150w；

Work temperature

Operating/storage

humidity

Work temperature ：-5°C～50°C

Storage temperature：-40ºC～70ºC

Work humidity：5%～95% RH

Storage humidity：5%～90% RH

Working Layer L2 & L3

Maximum

Consumption

≤110w

Switch capacity 2.56Tbps/23.04Tbps

Packet forwarding

rate

720Mpps

Access method Support the integration of fat and thin, support intelligent switch and

common switch two working modes, according to different

networking needs, flexible at any time to switch

Switch zero

configuration online

Layer 2 broadcast automatically discovers wireless AC

Configure Static IP Address Layer 3 to discover wireless ACs

DHCP Option 43 Discovers Wireless AC

DNS Domain Name Discovery Wireless AC

One-click

replacement

Replace the faulty device with a one-click in controller

STP Support RRPP Ring Topology and RRPP Multiple Instances

Support MSTP, MRPP, ERPS and so on

Support ERPS Ethernet Ring Protection Protocol (G.8032)

Support MSTP (IEEE 802.1s) protocol

Support BPDU protection, root protection and loopback protection

Support BPDU Tunnel

Multicast Multicast≥4K

Support IGMP v1/v2/v3 Snooping

VLAN Support 4K VLAN

Voice VLAN support

Support GVRP agreement

Support Private VLAN function
