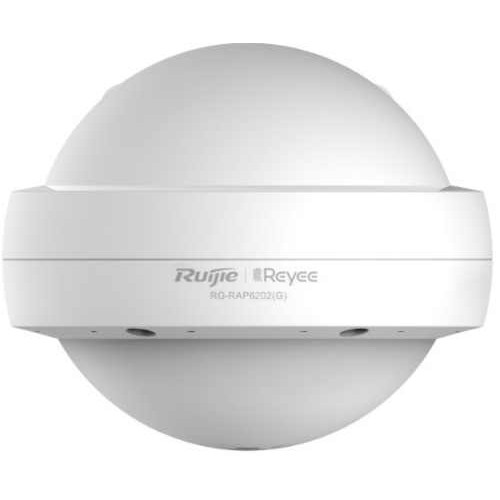

Reyee Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point RUIJIE RG-RAP6202(G)

- ''UFO'' design, a perfect blend of wireless technology and artwork.

- IP68 protection, rock-solid in harsh environments.

- Omni-directional coverage with long range.

- Easily add extra outdoor Wi-Fi with Reyee Mesh.

- Rack-separated mounting design, easily installation on high.

Specifications

Basic Feature

Wi-Fi Standards Wi-Fi 5 (IEEE 802.11ac Wave2)

Wi-Fi 4(IEEE 802.11n)

RF Design 2.4 GHz, 2 × 2, MU-MIMO

5 GHz, 2 × 2, MU-MIMO

Max. Wi-Fi Speed 2.4 GHz: 400 Mbps

5 GHz: 867 Mbps

Antenna 4

Antenna Type Built-In Omnidirectional

Antenna Gain 2.4GHz: 3 dBi

5GHz: 4 dBi

Transmit Power EIRP

≤ 26 dBm(2.4GHz)

≤ 27 dBm(5GHz )

country-specific restrictions apply

Myamar:

2400 MHz~2483.5 MHz ≤ 20 dBm

5150 MHz~5350 MHz ≤ 23 dBm

5470 MHz~5850 MHz ≤ 25 dBm

Thailand:

2400 MHz~2483.5 MHz ≤ 20 dBm

5150 MHz~5350 MHz ≤ 23 dBm

5470 MHz~5725 MHz ≤ 25 dBm

5725 MHz~5850 MHz ≤ 30 dBm

Fixed Ports 2 × 10/100/1000 Base-T

Max. Clients 110

Recommended Clients 96

Max. SSIDs 8

WLAN Basic Features

SSID Hiding Yes

Power Adjustment Yes

Roaming Layer 2 Roaming

Layer 3 Roaming

WMM Yes

Radar Signal Detection and Frequency Hopping Yes

WLAN Security

Security Mode WPA-PSK, WPA2-PSK, WPA/WPA2-PSK

Blacklist and Whitelist Yes

Enhanced User Experience

Wi-Fi Optimization Yes

Automatic RF adjustment via the platform Yes
