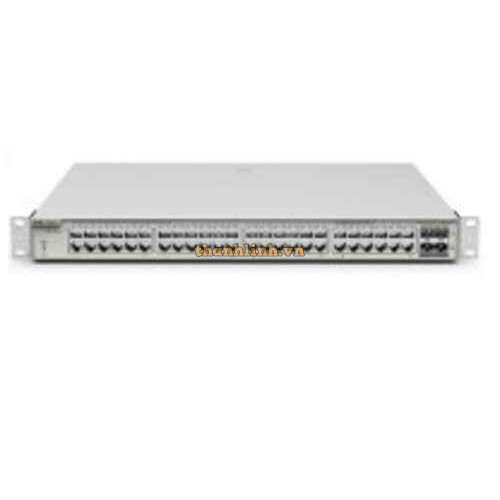

Layer 2 Smart PoE Managed Switch 48 Cổng 10/100/1000BASE-T + 4 cổng quang 10G

- 48 cổng 10/100/1000BASE-T PoE: 370W

- 4 cổng SFP+ 10G BASE-X

- Tốc độ chuyển mạch: 336Gbps

- MAC: 16K, VLAN: 4094

- Tính năng Layer 2: port mirroring, loop protection, cable detection

- Tính năng bảo mật: broadcast storm suppression, port speed limit, port isolation

- Kích thước: 440x357.6x43.6mm

- Nhiệt độ hoạt động: 0°C~50°C

- Dễ dàng quản lý và cấu hình qua Ruijie cloud

- Tích hợp Web management

- Nguồn AC 100~240V, 50/60Hz

- Hỗ trợ IEEE802.1Q VLAN, bảo mật giữa các nhóm thiết bị

Model RG-NBS3200-48GT4XS-P

Ports 48 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports

Switching capacity 336Gbps

Packet forwarding rate 132Mpps

MAC address Support static MAC address, MAC address filtering

MAC address table size 16K

Number of VLANs 4094

Link aggregation Support

Port mirroring Many-to-one mirroring

Spanning tree STP, RSTP

LLDP Support

ACL IP standard ACL

MAC extended ACL

IP extended ACL

Port ACL for Layer 2 ports (physical port / AP)

QoS Port-based speed limit (ingress/egress)

Security Port protection

Hardware CPP

Management Web management, Ruijie Cloud or Ruijie Cloud app management

DHCP DHCP snooping

EEE Support

PoE 48 Base-T ports (support PoE and PoE+)

Maximum PoE / PoE+ output power per switch: 370W

Maximum output power per port: 30W

Dimensions 440 x 357.6 x 43.6mm

Temperature Operating temperature: 0 ℃ ~ 50 ℃

Storage temperature: -40 ℃ ~ 70 ℃

Humidity Operating humidity: 10% ~ 90% RH

Storage humidity: 5% ~ 90% RH
