Hardware Specifications

Dimensions and Weight

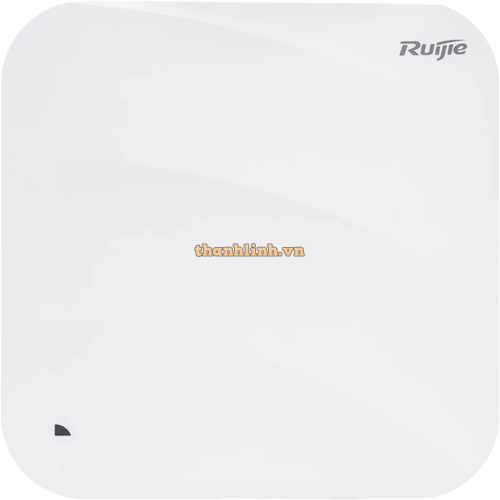

RG-AP880-L

Unit dimensions

(W x D x H)

230 mm x 230 mm x 51 mm (9.1 in. x 9.1 in. x 2.1 in.)

Shipping dimensions

(W x D x H)

284 mm x 262 mm x 124 mm (11.2 in. x 10.4 in. x 4.9 in.)

Unit weight

Main unit: 1.0 kg (2.2 lbs)

Mounting bracket: 0.1 kg (0.22 lbs)

Shipping weight

1.25 kg (2.76 lbs)

Mounting

Wall/Ceiling-mount (a mounting bracket is delivered with the main unit)

Lock option

Kensington lock and securing latch

Wi-Fi Radio

RG-AP880-L

Radio design

Tri-radio and up to eight spatial streams:

● Radio 1: 2.4GHz: Two spatial streams, 2x2 MU-MIMO

● Radio 2: 5GHz: Two spatial streams, 2x2 MU-MIMO

● Radio 3: 6GHz: Four spatial streams, 4x4 MU-MIMO

Operating frequencies

Radio 1: 802.11b/g/n/ax

● 2.400 GHz to 2.483 GHz, channels 1 to 13

Radio 2: 802.11a/n/ac/ax

● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48

● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64

● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140

● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165

Radio 3: 802.11ax

● 5.925 GHz to 7.125 GHz, U-NII-4, channels 1 to 233

Note: Country-specific restrictions apply.

Data rates

Combined peak data rate: 7.780 Gbps

Radio1: 2.4 GHz:

● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to 2SS HE40 802.11ax client devices (max.)

● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to 2SS HE20 802.11ax client devices (typical)

Radio 2: 5 GHz:

● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (max.)

● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)

Radio 3: 6 GHz

● Four spatial stream Single User (SU) MIMO for up to 4.804 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (max.)

● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)

● Four spatial stream Multi User (MU) MIMO for up to 4.804 Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max.)

● Four spatial stream Multi User (MU) MIMO for up to 2.402 Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

Data rate set

The following 802.11-compliant data rates in Mbps are supported:

2.4 GHz

● 802.11b: 1, 2, 5.5, 11

● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

5 GHz

● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MVC31, HT20 to HT40)

● 802.11ac: 6.5 to 1,732 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)

● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

6 GHz

● 802.11ax：8.6 ~ 4,804 (MCS0 ~ MCS11, NSS = 1 to 4, HE20 to HE160)

Packet aggregation

802.11n/ac/ax: A-MPDU and A-MSDU

Antenna type

Built-in omnidirectional antennas (two 2.4 GHz antennas, two 5 GHz antennas and four 6 GHz antennas)

Max. antenna gain

4.3 dBi in 2.4GHz , 4.1 dBi in 5GHz and 4.3 dBi in 6GHz

The downtilt angle for the maximum gain is roughly 30 degrees.

With reference to the pattern of each antenna of the MIMO radios, the maximum gain of the effective per-antenna pattern is 4.2 dBi in 2.4GHz , 5.1 dBi in 5GHz and 4.7 dBi in 6GHz.

Max. transmit power

2.4 GHz: 27 dBm (24dBm per chain)

5 GHz: 26 dBm (23dBm per chain)

6 GHz: 26 dBm (23dBm per chain)

Note: The transmit power is limited by local regulatory requirements.

Thailand

2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm

5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm

5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm

5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm

5.945 GHz to 6.425 GHz, EIRP ≤ 23 dBm

Power increment

Configurable in increments of 1 dBm

Radio technologies

802.11b: Direct-Sequence Spread-Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

Modulation type

802.11b: BPSK, QPSK, and CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM
