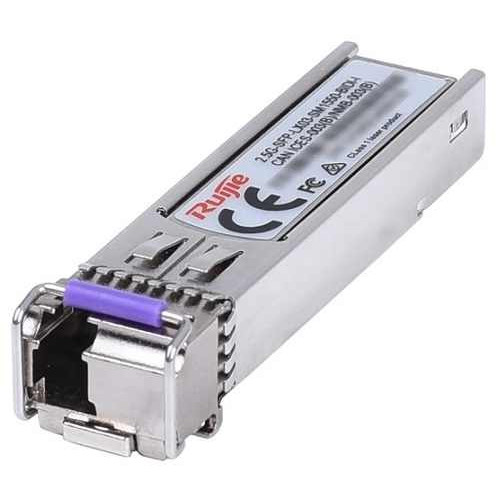

2.5G BiDi SFP Simplex LC SMF Transceiver Module RUIJIE 2.5G-SFP-LX03-SM1550-BIDI-I

- 2.5G BiDi SFP 1550nm-TX/1310nm-RX 3-km DOM Simplex LC SMF Transceiver Module.

- Max. power consumption 1W.

- Saving half fiber by using only one fiber for transmiting and receiving.

- Hot pluggable SFP MSA compliant.

- Digital optical monitoring capability for strong diagnostic capabilities.

- Compliant with IEEE 802.3z Gigabit Ethernet.

- Class 1 Laser safety and RoHS compliant.

Specifications

Data rate 3.125 Gbps

Form factor SFP

Connector type BIDI LC

Cable type SMF

Fiber end face finish type Ultra Physical Contact (UPC

Transmitter type DFB

Receiver type PIN

Reach 3 km (9,842.52 ft.)

Bit error ratio (BER) 1.00E-12

Data diagnosis-capable (DDM/DOM) Yes

Power consumption ≤ 1 W

Transmitter Optical Parameters

Wavelength 1550 nm TX

1310 nm RX

Max. transmit power (AVG) –3 dBm

Min. transmit power (AVG) –9 dBm

Min. extinction ratio ≥ 6.5 dB

Receiver Optical Parameters

Receive sensitivity (OMA) < –16 dBm

Overload optical power (AVG) –3 dBm

Environment and Reliability

Operating temperature –40ºC to +85ºC (–40ºF to +185ºF)

Operating humidity 10% RH to 90% RH

Storage temperature –40ºC to +85ºC (–40ºF to +185ºF)

Storage humidity 10% RH to 90% RH

Dimensions and Weight

Dimensions (W x D x H) 56.5 mm x 13.5 mm x 8.5 mm

Weight 35g

- Bảo hành: 3 năm.
