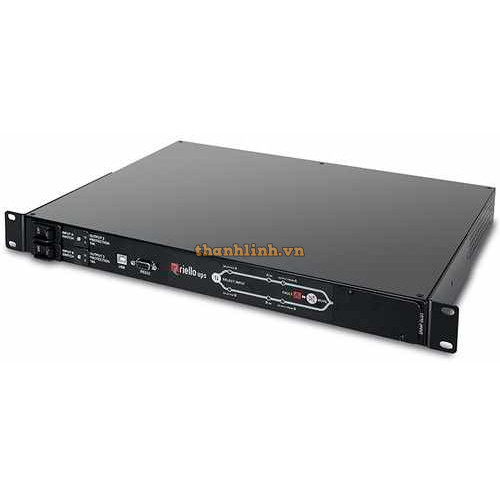

Multi Switch RIELLO MTA 16A

- 16A output Multiswitch ATS

- Full protection for consumers against mains and load failures

- Versatile to use: Multi Switch ATS can be powered with 2 different power supplies (2 UPS even of different sizes/types)

- 19” cabinet installation

- Display panel

- Can be connected to PowerNetGuard supervision software

- No signal connection between the Multi Switch ATS and the power sources or consumers is necessary

- Compatible with PowerShield software

- Slot for communications boards

Đặc tính kỹ thuật

Models MTA 16A

INPUT

Voltage 180-276 (selectable)

Frequency 50/60 Hz

ENVIRONMENTAL

Altitude max 3000 m

Color Dark grey RAL 5004

Communication DB9 with RS232 and USB ports, slot for communications interface, relay contact port

Protection rating IP20

Protections Overcurrent - overvoltage - undervoltage - protection against energy back-feed

Noise (at 1 m) < 35 dBA

Operating temperature 0 °C / +40 °C

Relative humidity <95% non-condensing

Output sockets 4+4 IEC-320 C13 (10 A) + 1 IEC-320 C19 (16 A)

DATA

Weight 6 kg

Dimensions (h w d) 44(1U) mm x 483(19”) x 330 mm

- Xuất xứ: Italy.

- Bảo hành: 2 năm.
