- 24 100/1000BASE-X SFP mini-GBIC/SFP ports
- 4 10/100/1000BASE-T RJ45 ports, shared with Port-1 to Port-4
- 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
- RJ45 to RS232 DB9 console interface for basic management and setup
Layer 3 IP Routing Features
- IP dynamic routing protocol supports OSPFv2
- Routing interface provides per VLAN routing mode
- Supports maximum 128 static routes and route summarization
Layer 2 Features
- Store-and-forward architecture with runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
- Storm control support
- Supports VLAN
- Supports Spanning Tree Protocol
- Supports Link Aggregation
- Provides port mirror (many-to-1)
- Port mirroring monitors the incoming or outgoing traffic on a particular port
- Loop protection to avoid broadcast loops
- Supports ERPS (Ethernet Ring Protection Switching)
- IEEE 1588 and Synchronous Ethernet network timing

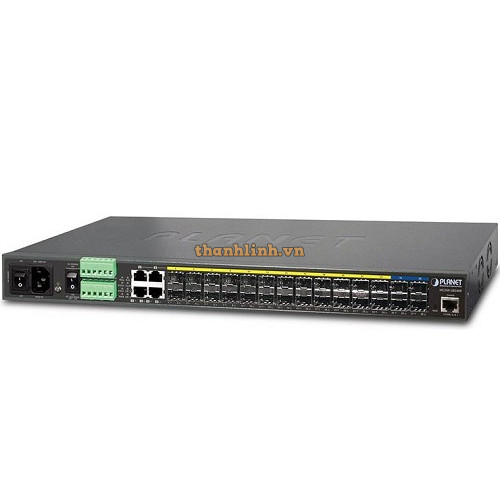

Bộ chuyển mạch 24-Port 100/1000BASE-X SFP + 4-Port 10G SFP+ Metro Ethernet Switch Planet MGSW-28240F
- Thương hiệu: PLANET
- Mã số sản phẩm: MGSW-28240F
- Tình trạng kho: Đặt hàng qua Zalo hoặc Email
-
15.692.000 đ
