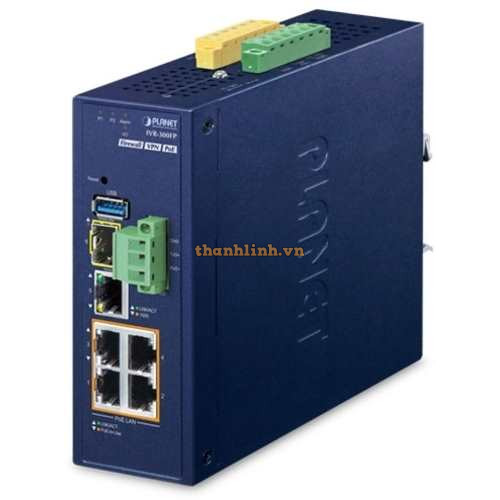

Hardware Specifications

Copper Ports 5 10/100/1000BASE-T RJ45 Ethernet ports including

　4 LAN ports (Ports 1 to 4)

　1 WAN/LAN port (Port 5)

Fiber Port 1 1000BASE-X SFP slot including

　1 WAN/LAN port (Port 6)

Serial Interface 1 x 3-pin terminal block for RS485

USB Port 1 USB 3.0 port

DI & DO Interfaces 2 Digital Input (DI):

　Level 0: -24V~2.1V (±0.1V)

　Level 1: 2.1V~24V (±0.1V)

　Input Load to 24V DC, 10mA max.

2 Digital Output (DO):

　Open collector to 24V DC, 100mA max.

Connector Removable 6-pin terminal block for power input

Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2

Reset Button < 5 sec: System reboot

> 5 sec: Factory default

Enclosure IP30 metal case

Installation DIN-rail, wall-mounting

LED Indicators System:

　P1 (Green)

　P2 (Green)

　Alarm (Red)

　I/O (Red)

Per 10/100/1000 RJ45 Ports (Ports 1-4):

　LNK/ACT (Green)

　PoE-in-Use (Amber)

Per 10/100/1000 RJ45 Ports (Ports 5):

　LNK/ACT (Green)

　1000 LNK (Amber)

Per 1000BASE-X SFP Interfaces (Port 6):

　LNK/ACT (Green)

Dimensions (W x D x H) 50 x 135 x 135 mm

Weight 765g

Power Requirements – DC 48~54V DC, 3A

Power Consumption Max. 7.56 watts/25.8 BTU (No Loading)

Max. 127 watts/433.34 BTU (Full loading)
