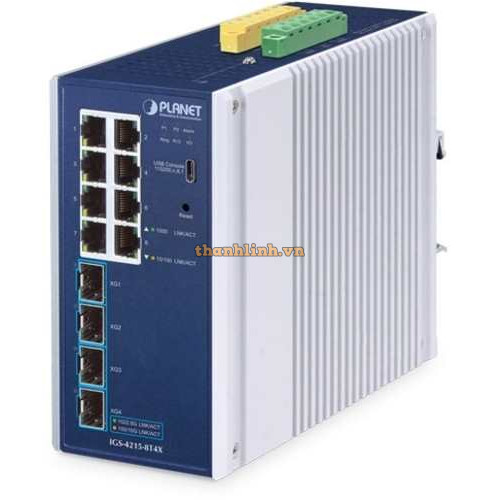

Hardware Specifications

Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 8)

PoE Injector Port 8 ports with 802.3bt PoE++ injector function (Ports 1 to 8)

SFP Ports 4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4)

Backward compatible with 1G/2.5GBASE-SX/LX/BX SFP transceivers

Console 1 x USB Type C to RS232 serial port (115200,8, N, 1)

Reset Button < 5 sec: System reboot

> 5 sec: Factory default

Connector Removable 6-pin terminal block

Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Removable 6-pin terminal block for DI/DO interface

Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND

Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC

DI, DO 2 digital input (DI)

　Level 0: -24V~2.1V (±0.1V)

　Level 1: 2.1V~24V (±0.1V)

　Input load to 24V DC, 10mA max.

2 digital output (DO)

　Open collector to 24V DC, 100mA max.

Power Requirements 48~54V DC, 8A (max.)

Power Consumption/ Dissipation Max. 10.2 watts / 34.8BTU (system on)

Max. 398.6 watts/1360.1BTU (Full loading)

Dimensions (W x D x H) 76 x 135 x 152 mm

Weight 1361g

Enclosure IP30 aluminum case

Installation DIN-rail kit and wall-mount ear

ESD Protection Contact Discharge 6KV DC

Air Discharge 8KV DC

LED System:

　Power 1 (Green)

　Power 2 (Green)

　Alarm (Red)

　Ring (Green)

　R.O.(Green)

　I/O (Red)

Per 10/100/1000T RJ45 PoE++ Ports:

　UP：1000 LNK/ACT (Green)

　 　　 10/100 LNK/ACT (Amber)

　Down：802.3bt (Green)

　　　　 802.3at (Amber)

PoE Usage:

　90/180/270/360W (Amber)

Per 10G SFP Interface:

　1G/2.5G LNK/ACT (Green)

　100/10G LNK/ACT (Amber)
