Physical Port
Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector ( Port-1 to Port-8 )
Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports ( Port-9 and Port-10 )
Two 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection ( Port-11 and Port-12 )
One RJ45 console interface for basic management and setup
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus , end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 8 ports of IEEE 802.3af/802.3at devices powered
240-watt PoE budget
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device ( PD )
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters in standard mode and 250m in extend mode
PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive-check
- PoE schedule

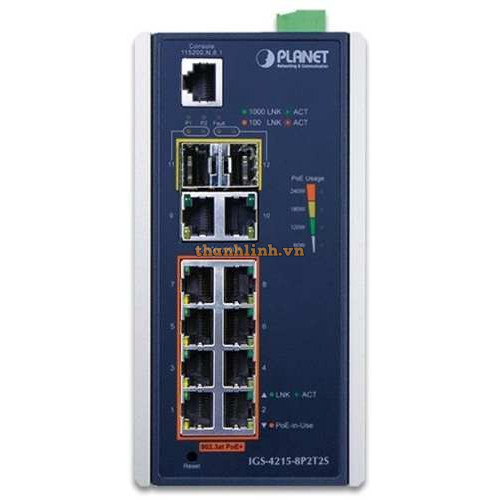

Bộ chia mạng công nghiệp Planet 8 Port 100/1000 802 PoE +2 Port 100/1000 + 2 Port SFP IGS-4215-8P2T2S
- Thương hiệu: PLANET
- Mã số sản phẩm: IGS-4215-8P2T2S
- Tình trạng kho: Đặt hàng qua Zalo hoặc Email
-
Xin liên hệ
