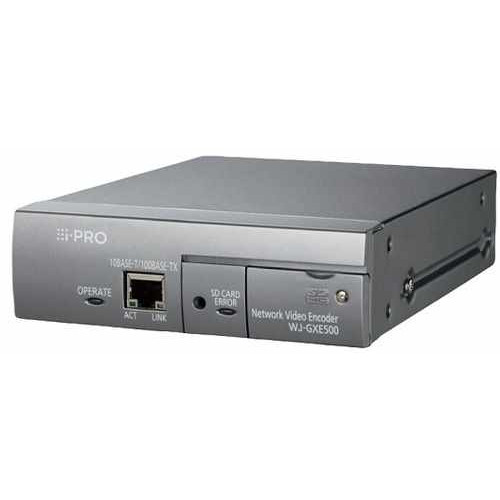

Đầu ghi hình 4 kênh I-PRO WJ-GXE500E

- Đầu ghi hình 4 kênh I-PRO WJ-GXE500E kết nối lên tới 4 camera tương tự.

- Truyền ảnh Full frame H.264 cho mỗi 4 kênh.

- Tương thích với tín hiệu ngõ ra: Xuất hình ra đồng thời H.264/MPEG-4 và JPEG với kích thước VGA.

- Âm thanh song hướng (1 kênh).

- Kích thước (WxHxD): 140 x 44 x 185 mm.

- Trọng lượng: 1.0kg.

Đặc tính kỹ thuật

Model WJ-GXE500E

Audio/Video IF

Video Input - NTSC: 4x 1.0V [p-p]/75Ω NTSC composite video inputs (BNC) Multiplexed control data and cable compensation compatible: 1 ~ 4 CH

- PAL: 4x 1.0V [p-p]/75Ω PAL composite video inputs (BNC) Multiplexed control data and cable compensation compatible: 1 ~ 4 CH

Microphone/Line Input MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack (monaural input) (Applicable microphone: Plug-in power type)

Supply voltage: 2.5V ±0.5V

Input impedance: approx. 2kΩ

Audio Output ø3.5 mm stereo mini jack (monaural output) Line level

Browser GUI

Camera Control Pan/ tilt/ zoom/ focus/ preset positions/ auto focus

(When using Panasonic P/T/Z cameras)

Display Mode Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens (JPEG only). 20 characters camera title available.

Unit Title Up to 20 characters

Camera Title (OSD) Up to 16 characters On/Off

Clock Display Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)

Alarm Control Reset

One Shot Capture A still picture will be displayed on a newly opened window

Audio - Mic (Line) Input: ON/OFF

Volume adjustment: Low/Middle/High

- Audio Output: ON/OFF

Volume adjustment: Low/Middle/High

SD Memory Data Download Still or motion images recorded in the SD/SDHC memory card can be downloaded

GUI/Setup Menu Language NTSC: English, French (Installation required for French)

PAL: English, French, Italian, Spanish, German, Russian (Installation required except for English)

System Log Up to 100 (Internal), Up to 4,000 (SD memory when the recording format is set to JPEG.) error logs
