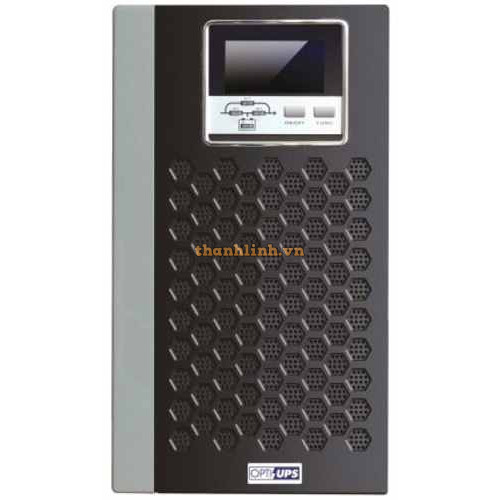

Nguồn lưu điện UPS OPTI DS3000I

- True On-Line Double Conversion

- Zero transfer time

- Wide range of input frequency (40~70Hz) and Output frequency 50/60Hz setting

- High-performance DSP processor, precision and fast data processing with high reliability

- Cold start (DC power on)

- Auto restart functions

- Extended battery pack for long service time

- RS232 and USB port

- SNMP card slot available

Specifications

Model DS3000I

Topology True On-Line Double Conversion

On-battery Output Waveform Pure Sine Wave

Pure Sine Wave 230V: 3000VA / 2700W

120V: 2000VA / 1800W

Input

Nominal Voltage 220/ 230/ 240 VAC; 110/ 115/ 120/127 VAC

Nominal Frequency 50/ 60Hz

Nominal Voltage Range 176-288 VAC (220/230/240 VAC); 96-155 VAC (110/115/120/127 VAC)

Output

Nominal voltage 220/ 230/ 240 VAC; 110/ 115/ 120/ 127 VAC

Voltage Regulation (Battery mode) ± 1%

Transfer Time (Typical) 0ms

Start on Battery Yes

Auto Restart Yes

Number of Outlets (Battery backup) 2x0V: 4 (IEC 10A)+ termimal

1x0V: 8 (NEMA 5-15)

Protection

Data Line Surge Protection RJ11/RJ45

Overload Capability 105%~130%: shutdown after 10s, 150%: shutdown after 5s

Over Current Protection Circuit Breaker

Discharge Protection Keylock

Battery

Configuration 2x0V: 96V (12V7Ah x 8)

1x0V: 72V (12V7Ah x 6)

Backup Time (80% Load) 6mins

Recharge Time to 90% (Typical)

Extended Battery Pack (Optional) 2x0V: BP 3KIL 96V(12V7Ah x 16)

1x0V: BP 2KIL 72V(12V7Ah x 6)

Indicator & Alarm

Display LED + LCD (Rectifier/ Bypass/ Inverter/ Battery)

Alarm Battery mode / UPS faults / Overload

Interface

Communication port RS232 and USB

SNMP Manageable Yes

Environmental

Operation Temperature 0~40ºC / 32~104ºF

Storage Temperature 0~70ºC / -32~158ºF

Relative Humidity 0~95% Non condensing

Mechanical

Dimension (W×D×H) 190×426×336 mm

Weight 25.6kg

- Bảo hành: 3 năm.
