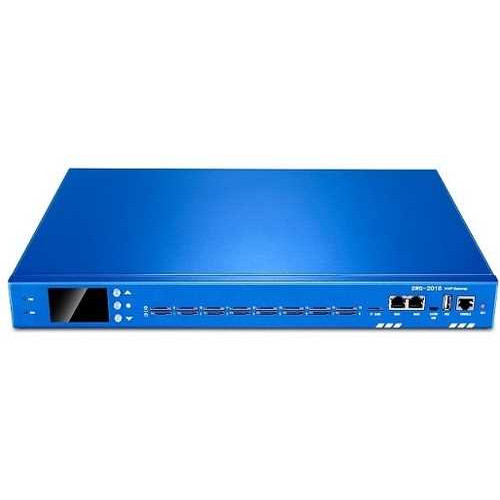

Thiết bị mạng GSM 16 kênh SIM di động Openvox SWG-2016G

- Tần số GSM: 850/900/1800/1900MHz.

- Hỗ trợ 16 cổng cắm SIM.

- Hỗ trợ 1 cổng LAN/WAN 10/100M.

- Hỗ trợ 1 cổng USB và 1 cổng TF.

- SIM Card: Hot-Swap.

- Màn hình 2.4-inch LCD hiển thị thông tin.

Features

VoIP Characters

- Support SIP，IAX2 Protocol

- Add, Modify & Delete SIP/IAX2 Trunk

- SIP/IAX2 Registration with Domain

- SIP V2.0 RFC3261 Compliance

- DTMF Mode: RFC2833/Inband/SIP Info

- Multiple SIP/IAX2 Registrations modes

- Abundant Codecs:G.711A, G.711U, G.729, G.722, G.723, G.726, GSM

Network

- IPv4，UDP/TCP，DHCP，TELNET，HTTP/HTTPS，TFTP

- PPTP VPN

- HTTP/SSH（Optcal Telnet）

- Ping & Traceroute Command on the Web

- Simple Security Strategy: white list, black list, security rules

Management

- Simple and convenient configuration via Web GUI

- Support maintenance and configuration by SSH

- Support configuration files backup and upload

- Support Chinese and English page

- Firmware Update by HTTP

- Support Web and SSH login password modification

- Restore Factory Settings

- CDR(More than 200,000 Lines CDRs Storage Locally)

- System log

- SIP/IAX2 log

- TCP and SIP capture

System Features

- Combine Different SIP/IAX2 Trunk into Group

- CLID Display & Hide (Need operators' support )

- Random call interval

- Call Duration Limitation

- Single Call Duration Limitation

- Real Open API Protocol (based on Asterisk)

- Support DISA

- SMSC/SMS/USSD

- PIN Identification

- Optional Voice Codec

- Ports Group Management

- SMS Bulk Transceiver, Sent to Email and Automatically Resend

- SMS Coding/Detecting Automatically Identification

- SMS Remotely Controlling Gateway

- SMS Forwarding and Quick Reply

- USSD transceiver

- Outbound

- Automatically Reboot

- Support MMP

- Support for custom scripts, dialplans

- Support Openvox cloud manage

Specifications

Model SWG-2016G

Module Type GSM

Module Number 16

Channel Number 16

Band GSM: 850MHz/ 900MHz/ 1800MHz/ 1900MHz

Weight (without antenna) 3.576kg

Power 16W

Dimension (without antenna) 440mm x 44mm x 300mm

SIM Card Hot-Swap

LCD dimension 2.4-inch

LCD resolution ratio 240 x 400

LAN 1 x 10/100M

WAN 1 x 10/100M

USB 1 (Supports USB storage)

TF 1 (Support TF Card storage)

Console 1

Operation Temperature 0℃ ~ 40℃

Operation Humidity Range 10% ~ 90%

Storage Temperature Range 20℃ ~ 70℃

- Bảo hành: 24 tháng.
