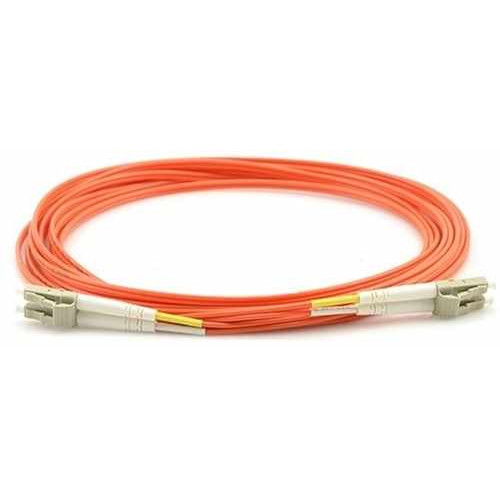

LC/PC-LC/PC OM1 Multimode Duplex Fibre Patch Cable VIVANCO VCFCLCDPM1LS3
Part Number: VCFCLCDPM1LS3
- Fiber type: Multimode
- Connector: LC-LC/PC
- Type: Duplex
- Fiber type: OM1 62.5/125 μm
- Jacket: LSZH
- Cable Diameter: 2.8*2(±0.1) mm
- Length: 3m
- Color: Orange
- Operating temperature: -20°C~+60°C
- Insertion strength: ≤19.6N
- Pulling Force: ≤19.6N
- Axial Tensile Strength: ≥40N
- Insertion loss: ≤0.3dB
- Return loss: ≥35 dB
- Insertion loss variation: ≤0.2 dB
- Return loss variation: ≤5 dB
- Hãng sản xuất VIVANCO của Germany.
LC/PC-LC/PC OM1 Multimode Duplex Fibre Patch Cable VIVANCO VCFCLCDPM1LS3
- Thương hiệu: VIVANCO
- Mã số sản phẩm: VCFCLCDPM1LS3
- Tình trạng kho: Xin liên hệ
-
Xin liên hệ
