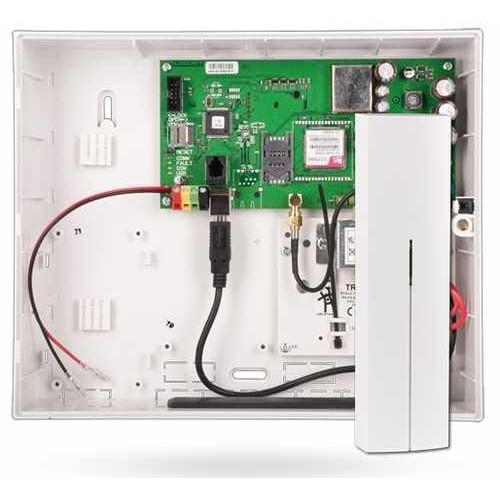

Bộ trung tâm báo động thông minh JABLOTRON JA-101KR-LAN3G

-Bộ trung tâm báo động thông minh JA-101KR bao gồm 50 thiết bị và kết nối mạng LAN, GSM 3G và radio module.

-Ứng dụng: Cho phép cài đặt một cách linh hoạt và bảo vệ dễ dàng các công trình thương mại, nhà ở, nhà nghỉ cuối tuần hoặc văn phòng trong xe buýt, không dây hoặc phiên bản kết hợp.

-JA-101KR-LAN3G control panel with built-in 3G / LAN communicator and radio module.

-The core element of the JABLOTRON 100+ security system. Enables the flexible setting and easy protection of commercial premises, houses, weekend homes, or offices in a bus, wireless, or a combined version.

-The required adjustments and sizing of the system are carried out through F-Link software. The JA-101KR-LAN3G control panel offers:

-Up to 50 wireless or bus zones.

-Up to 50 user codes.

-Up to 8 sections.

-Up to 16 programmable pg outputs.

-20 mutually independent schedules.

-SMS and voice reports from the system to up to 8 users remote control via SMS, voice menu and the MyJABLOTRON applications.

-4 adjustable ARCs.

-5 selectable protocols for an ARC.

automatic detection of a 2G/3G network with preference to the faster network.

-The control panel features integrated 2G/3G GSM and LAN communicators that enable voice, SMS and data communication with end users or ARCs.

-The control panel contains: JA-110R radio module, 4 GB memory card for saving the data of events, voice messages, saving photos etc.

-1 terminal board for bus connection.

-1 internal connector designed exclusively for a radio module (JA-110R).

-1 LAN connector.

-1 USB connector for control panel setting and transferring photos.

-1 connector for connecting another communicator or module (e.g. PSTN).

Đặc tính kỹ thuật

Model JA-101KR-LAN3G

Compatible with F-Link 1.4.0 or higher

Power supply 230 V/50 Hz, power supply A (EN 50131-6)

Back-up battery 12 V to 2.6 Ah (Warning: The battery is not included)

Maximum battery charging time 72 hours

Max. permanent bus load 400 mA

Max. short-term output current (5 min.) 1:00 SA
