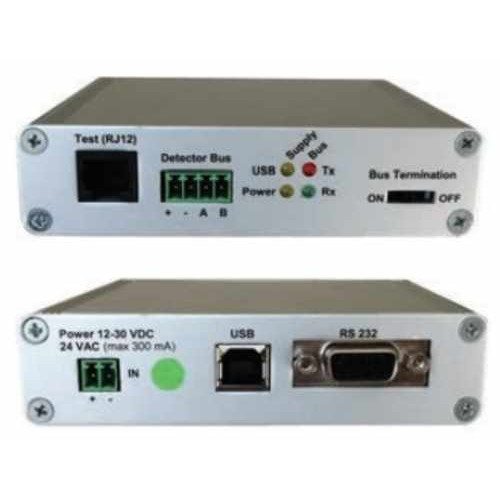

Interface Module HONEYWELL IFM-485-ST (CH19000301)

- The IFM-485-ST is an interface module (RS-485 to RS-232/USB) for bi-directional communication with ADPRO PRO E detectors. Using the IFM-485-ST up to 128 detectors can be configured and monitored from one PC; the detectors are connected via RS-485 and IFM-485-ST via USB or RS-232 to the PC.

- The IFM-485-ST interface module is preconfigured and equipped with the required connectors to be operated with any detector of the PRO E Series.

- The IFM-485-ST offers the following advantages:

+ Remote access to detector.

+ Connection of up to 128 detectors to a data bus (maximum bus length including ''stitches'': 1000 m).

+ Can be used with security and traffic detectors from Xtralis.

+ Very useful for alignment and signal check during setting up and routine maintenance.

+ Features a built-in termination resistor.

Thông số kỹ thuật

Model IFM-485-ST

Range of operation Up to 200 m

Operating Voltage (External Supply, not included) 12-30 VDC/ 24 VAC, Max. 300 mA

Dimensions 104.8 x 95.3 x 25.4 mm

Shipping weight 386 g

Standards and directives 2011/65/EU RoHS2 Directive

2014/30/EU EMC Directive

EN 50130-4:2011

EN 61000-6-3:2007 + A1:2011

EN 50581:2012

- Bảo hành: 12 tháng.
