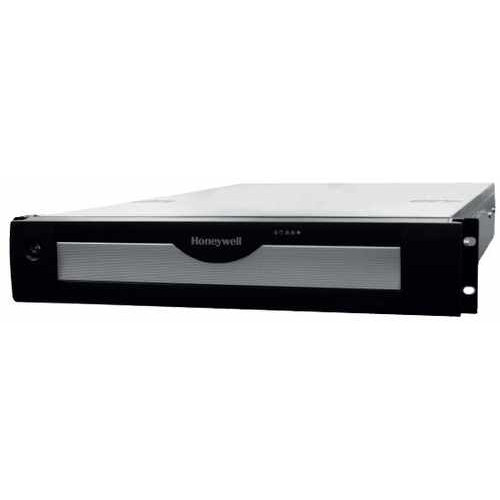

Server ghi hình 48 kênh HONEYWELL MAXPRO HNMSE48C04T

- Server ghi hình MAXPRO SE 48 kênh IP.

- Bộ xử lý: Intel® Core™ i7-7700, 3.6 GHz, Intel HD Graphics 630.

- Bộ nhớ RAM: 16GB DDR4.

- HDD: 250GB M.2 SSD, 1 x 4 TB.

- Chuẩn nén hình ảnh: MJPEG, MPEG-4, H.264, H.265.

- Giao tiếp mạng: 2 x 1GbE.

- Băng thông: Incoming 64Mbps, Outgoing 200Mbps.

- Chế độ ghi hình: 1920 fps @ 4CIF/VGA or 1920 fps @ 720p HD or 1280 fps @ 1080p (4 Mbps bitrate) HD.

- Chế độ xem lại: 1/4/8/16.

- Đầu ra video: Dual monitor support -2 HDMI, 1 DVI-D, 1 DVI-I.

- Hỗ trợ cổng USB: 1x Front, 6x Back (including 4x USB 3.0).

- Hỗ trợ 19 User truy cập từ xa.

- Hệ điều hành: Windows 10 IoT Enterprise for Embedded Systems.

- Nguồn điện: 100-240V ~ 50/60 Hz - max 500W.

Thông số kỹ thuật

Model HNMSE48C04T

Operational

Database Microsoft® SQL Server® 2019 Express

Operating system Windows 10 IoT Enterprise for Embedded Systems

Image compressions supported MJPEG, MPEG-4, H.264, H.265

Supported honeywell ip cameras and encoders Supports Honeywell’s Performance IP, equIP® Series, 30/60 Series IP cameras.

Audio support 2-way audio for specific IP camera models

Maximum number of desktop client connections Desktop Client - 38 per unit from 19 remote workstations + 2 local on NVR

Salvo layouts Desktop Client - Full, 2x2, 1x5, 3x3, 2x8, 1x12, 4x4.

Web Client - 2x2.1x1,1x2,1x3. Mobile app (Phone) - 2x2,2x4,1x2, 1x1. Mobile app (Tablet) - 3x3, 2x2, 1x1.

Picture controls per camera Sharpness, blur, brightness, contrast, hue, saturation, maintain aspect ratio, stretched, original size and picture mirror

OSD Concealed text option

Playback controls per camera - desktop client FWD/REV Play x (1, 2, 4, 8, 16)

Slow FWD/REV Play x (1/2, 1/4, 1/8)

Search types Time/date timeline, time jump FWD/REV, bookmarks, calendar, preview, film strip, event search and SMART Motion Search

Recording schedule Continuous and event based with H/M/D and holiday and exception days

Recording methods per camera Continuous, event based and user activated
