Thông số kỹ thuật:
OPERATIONAL
Video Standard PAL/NTSC
Scanning System Progressive
Image Sensor 1/3” CMOS
Number Of Pixels (H x V) 2560×1440
Minimum Illumination (Color/BW) 0.005 lux @F1.6, AGC ON; 0 lux with IR
S/N Ratio ≥50db
Electronic Shutter Speed 1/2s ~ 1/100,000s
IR Distance 20 ~ 30 m
IR Light Control Smart IR (Auto/Manual)/OFF
Day/Night ICR
Backlight Compensation WDR, HLC, BLC
White Balance Auto/Indoor/Outdoor/Manual
Gain Control Auto/Manual
Wide Dynamic Range 120dB
Noise Reduction 3D DNR
Lens 3.6mm@ F1.6
Angle Of View H:78°, V:40°
Privacy Masking Off / On (4 Areas)
Local Storage Micro SD (up to 256 GB)
VIDEO
Video Compression
Main stream: H.265 / H.264
Sub stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264 / MJPEG
Resolution
4MP (2560 × 1440), 3MP (2304 × 1296),
1080P (1920 × 1080), 720P (1280 × 720), D1,
480× 240, CIF
Number of Video Streams 3
Frame Rate Main Stream
60Hz: 4MP/3MP/1080P/720P(1~30fps);
50Hz: 4MP/3MP/1080P/720P(1~25fps)
Frame Rate Second Stream
60Hz: 720P/D1/CIF (1~30fps);
50Hz: 720P/D1/CIF (1~25fps)
Frame Rate Third Stream
60Hz: D1/480× 240/CIF (1~30fps);
50Hz: D1/480× 240/CIF(1~25fps)
Bit Rate 64 Kbps ~ 8 Mbps
Ingress Protection IP67
Impact Resistance 0IK10
REGULATORY
Emissions EN 55032, FCC PART 15
Immunity EN 55035
Safety IEC 60950-1, IS 13252(Part 1)
RoHS IEC 62321
AUDIO
Audio Compression G.711A/G.711U
Audio Stream 1-way
Audio Interface 1CH audio input
NETWORK
Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)
Supported Web Browsers Chrome/Edge
Supported OS Microsoft Windows 10
Protocols*
IPv4, IPv6, TCP / IP, UDP, DHCP, NTP, RTSP, RTP,
RTCP, PPPoE, DNS, DDNS, SMTP, FTP, 802.1x,
SNMP, UPnP, HTTP, HTTPs, QoS, IGMP / Multicast,
ICMP, ARP, TLS
Interoperability ONVIF Profile G/S/T
Maximum Users Access 3 Users
Security
User account and password protection, HTTPS, IP
Filter, Digest authentication, TLS1.2 only, AES128
/ 256, SSH / Telnet closed
Languages Supported English, Italian, Portuguese, Russian, Spanish(Mexico), Dutch, French, German, Polish, Japanese, Chinese, Korean
EVENTS / ANALYTICS
Built-in Video Analytics
Motion Detection, Tampering, Intrusion, Object,
Video Exception (scene change, video blur and
video cast detection), line crossing detection and
region intrusion detection
Region Of Interest 8
ELECTRICAL
Power Supply 12VDC, PoE (IEEE 802.3af) (Class 3)
Power Consumption (Max) MAX 5W
MECHANICAL
Dimensions (D x D x H) Ø 167.5 mm × 74.5 mm × 74.5 mm
(Ø 6.59″ x 2.93″ x 2.93″)
Product Weight 0.38 kg (0.83lb)
Package Weight 0.48 kg (1.05lb)
Body Material Metal housing
ENVIRONMENTAL
Operating Temperature -30 °C ~ 60 °C (-22°F~140°F)
Relative Humidity Less than 90% (non-condensing)
SYSTEM COMPATIBILITY
20 Series NVR Integration with 20 Series NVR

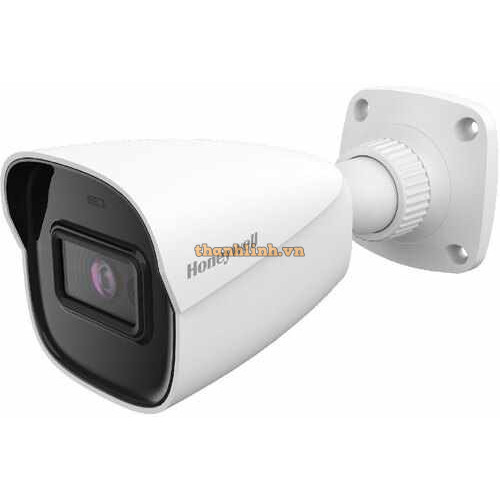

Camera Giám Sát Honeywell HC20WB4R3
- Thương hiệu: HONEYWELL
- Mã số sản phẩm: HC20WB4R3
- Tình trạng kho: Xin liên hệ
-
6.095.000 đ
