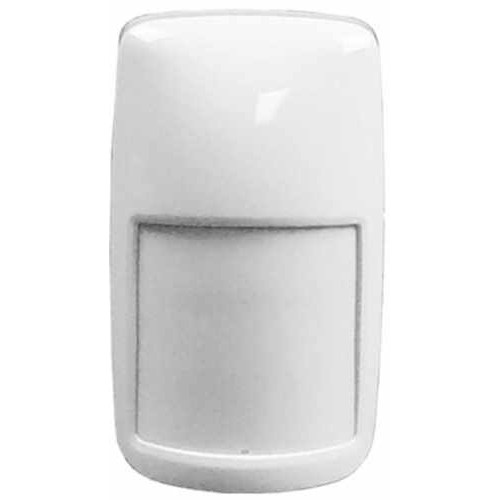

PIR Motion Detector HONEYWELL DT8035

- Designed with the installer in mind, this high performance small form factor motion detector DT8035 offer a trouble-free, out of the box experience to simplify the install process and reduce install time. With the passive infrared DT8035, optimum performance is achieved using custom developed extended range Fresnel optics, look down, cover and wall tamper, and selectable pet immunity. Leading edge sensing technologies to suit the requirements of most applications, PIR Motion Detector HONEYWELL DT8035 will maximize intruder detection while diminishing false alarms.

- Technology: PIR.

- Coverage Range: 12.19 x 17.07m.

- Optics: Fresnel Lens.

- Power: 9.0 - 15 VDC.

Specification

Model DT8035

Technology PIR

CPU Yes

Coverage Range 12.19m x 17.07m

Optics Fresnel Lens

Anti-Masking Yes

Microwave X-Band 10.525 GHz

Power 9.0 - 15 VDC

Look Down Zone Yes, selectable

Pet Immunity Yes (0 or 100 lbs)

Front And Rear Cover Tamper Yes

Operating Temperature -10°C to 55°C

Temperature Compensation Advanced Dual Slope

UV Protected Lens Yes

PIR White Light Immunity 6,500 Lux typical

Terminal 6 pin

Integrated End-Of-Line Resistor no

Walk Test Enabled With Flashlight Yes

Agency Listing UL, ULC, SIA

Screws And Wall Mounts Included

Screw Retention And Mounting Features Included

- Bảo hành: 12 tháng.
