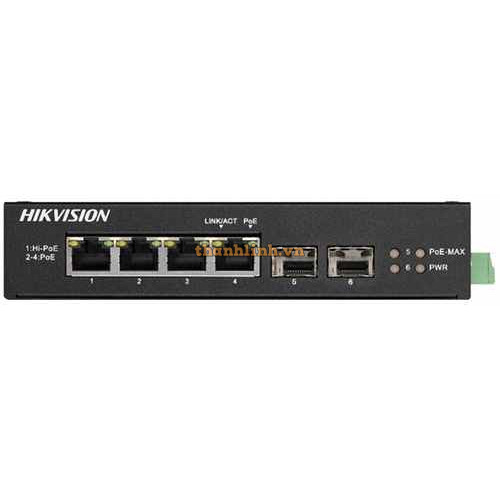

4-Port Gigabit Unmanaged Hi-PoE Switch HIKVISION DS-3T0506HP-E/HS

- DS-3T0506HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload.

- The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

- 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports.

- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).

- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).

- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.

- 6 KV surge protection for PoE ports.

- PoE output power management.

- Up to 300 m long-range transmission.

- PoE watchdog to auto detect and restart the cameras that do not respond.

- Port isolation to improve network security.

- Wider temperature (-30 to 65 °C) design.

- Wire-speed forwarding.

- Store-and-forward switching.

- Solid high-strength metal shell.

- Reliable fan-free design.

Specification

Model DS-3T0506HP-E/HS

Network parameters

Port number 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports

Port type RJ45 port, full duplex, MDI/MDI-X adaptive

Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab

Forwarding mode Store-and-forward switching

Working mode Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode

Ports for long-distance transmission Ports 3 and 4

MAC address table 4 K

Switching capacity 12 Gbps

Packet forwarding rate 8.928 Mpps

Internal cache 1.5 Mbits

PoE power supply

PoE standard Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Ports 2 to 4: IEEE 802.3af, IEEE 802.3at

PoE power pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously

PoE port Ports 2 to 4

Hi-PoE port Port 1

Max. port power Port 1: 60 W

Ports 2 to 4: 30 W

PoE power budget 60 W (0 to 40 °C)

Dialing function

Long range Ports 3 and 4: up to 300 m

Port isolation Ports 1 to 4: port isolation mode to improve network security

PoE watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond

General

Shell Metal material, fan-free design

Power supply 48 to 57 VDC, 1.35 A Max

Power consumption in idle < 5 W

Max. power consumption 65 W

Power source 65 W

Dimension 158 × 101.2 × 31.6 mm

Weight 0.38 kg

- Bảo hành: 24 tháng.
