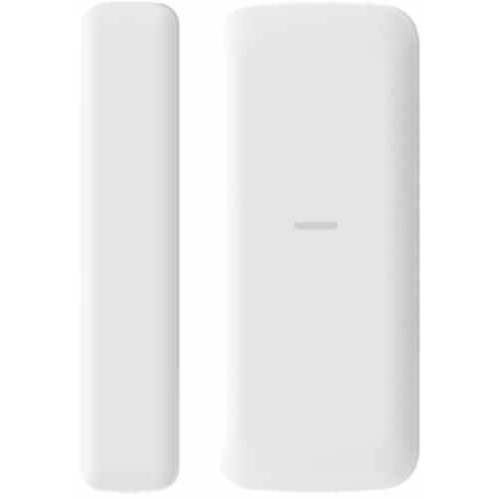

Công tắc từ không dây HIKVISION DS-PDMCS-EG2-WB (Gen2)

- Công tắc từ không dây 433 MHz.

- Khoảng cách kết nối: 1.000 mét.

- Có chỉ báo cường độ tín hiệu.

- Có thể cấu hình từ xa qua APP.

- Loại pin: 1 x CR2450 (kèm sẵn trong thiết bị, thay thế dễ dàng).

- Tuổi thọ pin: khoảng 3 năm.

Features

- Slim design for an unobtrusive (unnoticeable) installation.

- Fully remote configurable through App.

- Multiple enrollment methods and easy installation design.

- Frequency hopping against jamming for reliable transmission.

Đặc tính kỹ thuật

Model DS-PDMCS-EG2-WB

Detection Performance

Detection Method Opening Contact

Detection Gap 52mm Max

Feature

Digital Processing Support

Tamper Protection Front; Rear

Environment Temperature Indicator Support

Interface

Power Switch Power Up Enrolling

LED Indicator Blue (Alarm)

Transmission

Transmission Technology Tri-X Wireless

Transmission Method Two-Way RF Wireless

Transmission Frequency 433MHz

Transmission Security AES-128 Encryption

Transmission Range(Free Space) 1 km

Frequency Hopping Support

Enrolling Method Power up;Remote ID;QR Code

Electrical Characteristics

Standard Battery Life 3 years in work status (being triggered 20 times per day)

Power Supply Battery Powered

Battery Type CR2450 x 1

Typical Voltage 3V

General

Operation Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)

Operation Humidity 10% to 90%
