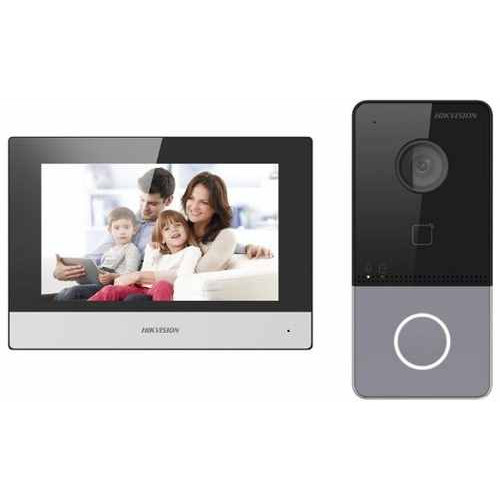

Bộ Kit chuông cửa có hình IP HIKVISION DS-KIS603-P(C)

- Bộ Kit chuông cửa IP dành cho biệt thự hoặc nhà ở, có một nút gọi, bao gồm: DS-KV6113-WPE1(C) × 1, DS-KH6320-WTE1 × 1, PSU × 2.

- Điều khiển thuận tiện qua ứng dụng di động Hik-Connect App.

- Bộ đổi nguồn đi kèm trong gói (tiêu chuẩn Châu Âu).

Thông số kỹ thuật

Door station

Operation system Embedded Linux operation system

Flash 32 MB

RAM 256 MB

Door station

Camera 2MP HD camera

Night vision Low illumination IR supplement mode:3 m

Backlight compensation Support

Digital noise reduction Support

WDR True WDR

Field of view Horizontal: 131° Vertical: 78°

Video Compression Standard H.264

Stream Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps

Motion detection Support

Flash-avoid frequency 50 Hz, 60 Hz

Door station

Audio input Built-in omnidirectional microphone

Audio output Built-in loudspeaker

Audio quality Noise suppression and echo cancellation

Audio compression standard G.711 U

Audio compression Rate 64 Kbps

Audio intercom Two-way audio communication

Door station

Network protocol TCP/IP, RSTP

Wired network 10/100 Mbps Ethernet

Door station

RS-485 1

Alarm input 4

Debugging port 1

Grounding 1

TAMPER switch 1

Door station

Power consumption ＜10 W

Working temperature -40° C to 53° C(-40° F to 127.4° F)

Working humidity 10% to 95%

Dimension 138 mm × 65 mm × 27 mm

Installation Surface mounting

Protection level IP65

Indicator 2

Power supply IEEE802.3af, standard PoE

12 VDC

Indoor station

Operation system Embedded Linux operation system

Memory 128 MB
