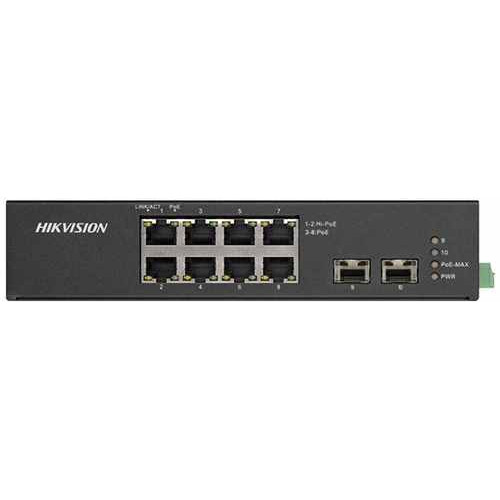

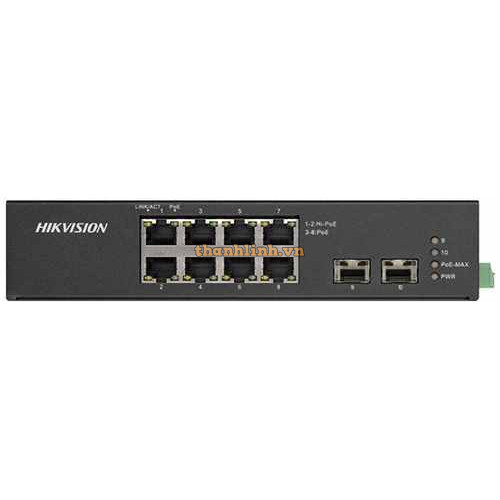

8-Port Gigabit Unmanaged Hi-PoE Switch HIKVISION DS-3T0510HP-E/HS

- DS-3T0510HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload.

- The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

- 6 × gigabit PoE RJ45 ports, 2 × gigabit Hi-PoE RJ45 ports and 2 × gigabit SFP fiber optical ports.

- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 90 W PoE output).

- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).

- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.

- 6 KV surge protection for PoE ports.

- PoE output power management.

- Up to 300 m long-range transmission.

- PoE watchdog to auto detect and restart the cameras that do not respond.

- Port isolation to improve network security.

- Wider temperature (-30 to 65 °C) design.

- Wire-speed forwarding.

- Store-and-forward switching.

- Solid high-strength metal shell.

- Reliable fan-free design.

Specification

Model DS-3T0510HP-E/HS

Network parameters

Port number 6 × gigabit PoE RJ45 ports, 2 × gigabit Hi-PoE RJ45 ports and 2 × gigabit SFP fiber optical ports

Port type RJ45 port, full duplex, MDI/MDI-X adaptive

Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab

Forwarding mode Store-and-forward switching

Working mode Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode

Ports for long-distance

transmission Ports 7 and 8

MAC address table 4 K

Switching capacity 20 Gbps

Packet forwarding rate 14.88 Mpps

Internal cache 1.5 Mbits

PoE power supply

PoE standard Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Ports 3 to 8: IEEE 802.3af, IEEE 802.3at

PoE power pin Ports 1, 2, 7 and 8: Ethernet cables 1/2/3/6 and 4/5/7/8 provide

power supply simultaneously.

Ports 3 to 6: Ethernet cables 1/2/3/6 provide power supply

PoE port Ports 3 to 8

Hi-PoE port Ports 1 and 2

Max. port power Ports 1 and 2: 90 W

Ports 3 to 8: 30 W

PoE power budget 110 W

Dialing function

Long range Ports 7 and 8: up to 300 m

Port isolation Ports 1 to 8: port isolation mode to improve network security

PoE watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond

General

Shell Metal material, fan-free design

Power supply 48 to 57 VDC, 2.5 A Max

Power consumption in idle < 10 W

Max. power consumption 120 W

Power source 120 W

Dimension 197 × 114.2 × 42.2 mm

Weight 1.11 kg

- Bảo hành: 24 tháng.
