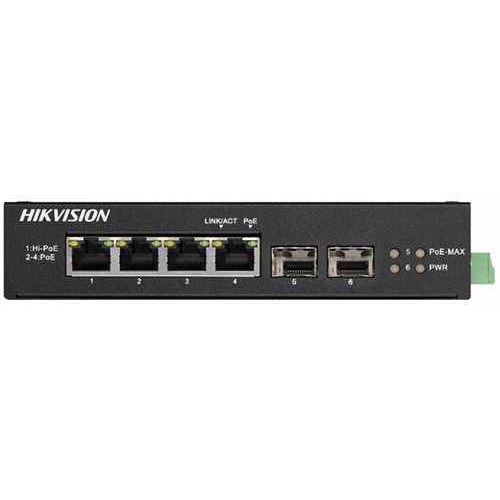

4-Port Gigabit Unmanaged Hi-PoE Switch HIKVISION DS-3T0506HP-E/HS
- DS-3T0506HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload.
- The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.
- 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- PoE output power management.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Wider temperature (-30 to 65 °C) design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Specification
Model DS-3T0506HP-E/HS
Network parameters
Port number 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode Store-and-forward switching
Working mode Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
Ports for long-distance transmission Ports 3 and 4
MAC address table 4 K
Switching capacity 12 Gbps
Packet forwarding rate 8.928 Mpps
Internal cache 1.5 Mbits
PoE power supply
PoE standard Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
PoE power pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously
PoE port Ports 2 to 4
Hi-PoE port Port 1
Max. port power Port 1: 60 W
Ports 2 to 4: 30 W
PoE power budget 60 W (0 to 40 °C)
Dialing function
Long range Ports 3 and 4: up to 300 m
Port isolation Ports 1 to 4: port isolation mode to improve network security
PoE watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond
General
Shell Metal material, fan-free design
Power supply 48 to 57 VDC, 1.35 A Max
Power consumption in idle < 5 W
Max. power consumption 65 W
Power source 65 W
Dimension 158 × 101.2 × 31.6 mm
Weight 0.38 kg
- Bảo hành: 24 tháng.
4-Port Gigabit Unmanaged Hi-PoE Switch HIKVISION DS-3T0506HP-E/HS
- Thương hiệu: HIKVISION
- Mã số sản phẩm: DS-3T0506HP-E/HS
- Tình trạng kho: Xin liên hệ
-
Xin liên hệ
