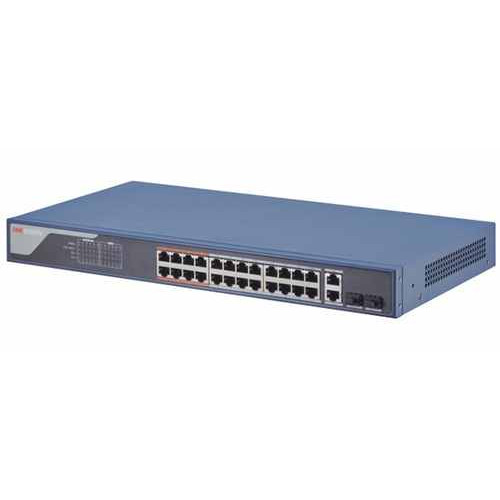

• 24 Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1326P-SI

24 Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1326P-SI

- 24 cổng RJ45 PoE tốc độ 100 Mbps và 2 cổng combo Gigabit.

- Các cổng PoE tuân theo tiêu chuẩn IEEE 802.3at/af.

- Quản lý cấu trúc mạng, đẩy thông báo cảnh báo, theo dõi tình trạng mạng.

- Bảo vệ chống sét lên đến 6 KV cho các cổng PoE.

- Camera AF/AT có thể hoạt động ở khoảng cách lên đến 300m khi sử dụng chế độ mở rộng.

Specification

Model DS-3E1326P-SI

Network Parameters

Port Number 24 × 100 Mbps PoE RJ45 port, and 2 × gigabit combo

Port Type RJ45 port, full duplex, MDI/MDI-X adaptive

Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z

High Priority Ports Ports 1 to 8

Forwarding Mode Store-and-forward switching

Working Mode Standard mode (default)

Extend mode

MAC Address Table 16K

Switching Capacity 8.8 Gbps

Packet Forwarding Rate 6.5472 Mpps

Internal Cache 4 Mbits

PoE Power Supply

PoE Standard IEEE 802.3af, IEEE 802.3at

PoE Power Pin End-span: 1/2(-), 3/6(+)

Mid-span: 4/5(+), 7/8(-)

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port Ports 1 to 24

Max. Port Power 30 W

PoE Power Budget 370 W

Software Function

Device Maintenance Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync

Port Configuration Port rate configuration, slow control, and ports enabling

Long Range Up to 300 m transmission

PoE Configuration PoE watchdog: Ports 1 to 24 auto detect and restart the cameras that do not respond

PoE enabling: Support

Port Rate-Limiting Rate-limiting for ingress and egress ports

Storm Control Storm control of unknown unicast, multicast and broadcast

Port Mirroring Support

Link Aggregation Static link aggregation supported for G1 and G2 port

Port Isolation Ports in isolation group cannot communicate with each other

QoS WRR and SP scheduling and port priority

VLAN 4094 VLANs

STP STP and RSTP protocols

SNMP SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces

LLDP LLDP protocol supported for port configuration, global configuration and neighbour discovery

General

Power Supply 100VAC~240 VAC, 50/60 Hz, Max. 6.5 A

Max. Power Consumption 400W

Power Consumption in Idle 5W

- Bảo hành: 24 tháng.
