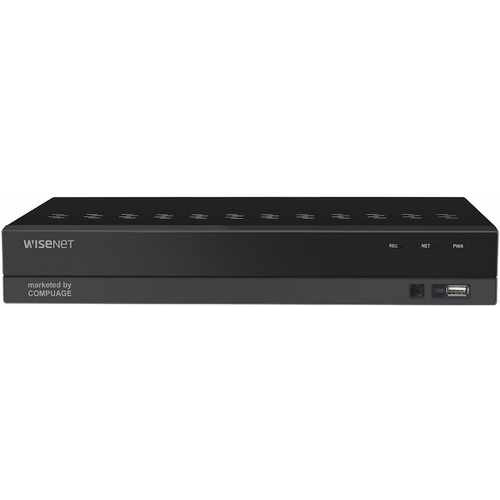

Đầu ghi hình AHD 8 kênh Hanwha Techwin WISENET ZRD-E820L/VAP

- 8CH 1080N analog + 2CH network camera recording

- AHD, TVI, CVI, CVBS analog input

- H.264 supported

- Coaxial control

- HDMI / VGA video output

- Max. 1 internal HDDs

Đặc tính kỹ thuật

Model ZRD-E820L/VAP

Display

Video Input Analog Camera: 8CH BNC, PAL type

AHD (720P, 1080P), TVI (720P, 1080P), CVI (720P, 1080P), CVBS 960H(960x576)

Network Camera: Max. 2CH (up to 2MP)

Frame Rate Analog Camera: 200fps@960x1080,1280x720, 960x576

Total IP Camera: 15fps@1920*1080

Resolution 960x1080(1080P-Lite)/ 1280x720 (HD) / 960 x 480 (960H)

Multi Screen Display 1/4/6/8/9/10/12/Auto Seq

Performance

Operating System Embedded Linux

Compression H.264

Mode Manual, Schedule (Continuous/Event), Event (Pre/Post)

Event Video Loss, Motion (Sensitivity Level 1~8), Tampering

Overwrite Modes Off / On (Auto)

Pre-alarm 1 ~ 10sec

Post-alarm Up to 5min (10 ~ 300 sec)

Search & Playback

Search Mode Date/time, Event, Motion

Playback Function Fast forward / backward (2x, 4x, 8x)

Slow forward (1/2x, 1/4x, 1/8x)

Step Forward

Network (IPv4)

Transmission Speed Analog Camera: 96fps@960x1080

IP Camera: 15fps@1920*1080

Bandwidth Up to 16Mbps

Max. Remote Users Max 7 (admin+user)

Protocol Support TCP/IP, UDP/IP, UDP

Monitoring HD E-Viewer II (Client & Mobile Viewer)

Internal HDD 1 SATA HDD * Support max. 6T/HDD

External (e-SATA Interface) RF, AVI, MP4

Interface

Monitors VGA: 1080P (Source: 960 x 1080), 720P, 1024×768

1 HDMI: 1080P (Source : 960 x 1080), 720P, 1024×768

Audio Inputs/ Output 1/1

Audio Compression G.711a

Remote Notification Notification via e-mail

Ethernet 1 RJ45 10/100Base-T

USB 2 x USB 2.0

General

Input Voltage/ Current 12V/2A DC Adaptor
