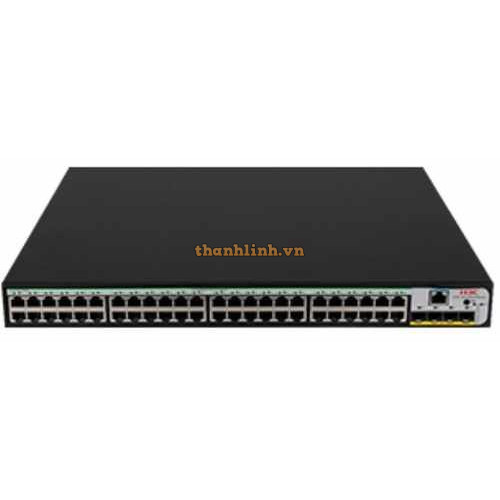

48-Port GE + 4-Port SFP Layer 3 Switch H3C S5120V3-52P-LI
- Support 48 x 10/100/1000TX port, 4 x SFP port and 1 console port.
- Switching capacity: 104Gbps.
- Forwarding capacity: 77.4Mpps.
- CPU: 1 Core, 800MHz.
- Flash/SDRAM: 256MB/512MB.
- MAC address entries: 8K.
- VLAN table: 4094.
- Dimensions (W × D × H): 440 × 230 × 43.6 mm.
- Weight: ≤3.5kg.
Specifications
Hardware Specifications
Switching capacity 104Gbps
Forwarding capacity 77.4Mpps
CPU 1 Core, 800MHz
Flash/SDRAM 256MB/512MB
Dimensions (W × D × H) 440×230×43.6 mm
Weight ≤ 3.5 kg
Management port 1 console port
Networking interface 48×10/100/1000TX+4×SFP
Maximum Stacking bandwidth 16Gbps
Maximum stacking num 9
Port Surge 6KV
Input voltage AC: The rated voltage range is 100V to 240V, 50/60Hz
Total power consumption MIN:
AC: 18W
MAX:
AC: 41W
Fan number 1
MTBF(Year) 115.68
MTTR(Hour) 1
Operating temperature -5℃ ~ 50℃(normal operating temperature)
-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature -40℃ ~ 70℃
Relative humidity (non-condensing) 5% RH to 95% RH, non-condensing
Software Specifications
Port aggregation GE/10GE port aggregation
Dynamic aggregation
Static aggregation
Cross-device aggregation
Broadcast/Multicast/Unicast storm suppression Storm suppression based on port bandwidth percentage
Storm suppression based on PPS
Storm suppression based on BPS
Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression
Traffic control 802.3x traffic control and half-duplex backpressure
IRF2 Distributed device management, distributed link aggregation, and distributed resilient routing
Stacking through standard Ethernet interfaces
Local device stacking and remote device stacking
MAC address table Static MAC address
Blackhole MAC address
Setting the maximum number of port MAC addresses to be learned
VLAN Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
QinQ and selective QinQ
VLAN mapping
Voice VLAN
MVRP
DHCP DHCP Client
DHCP Snooping
DHCP Snooping option82
DHCP Relay
DHCP Server
DHCP auto-config
VLAN interface Both IPv4 and IPv6 supported
ARP ARP Detection
ARP speed limit
IP routing Static routing
RIPv1/v2 and RIPng
OSPFv1/v2 and OSPFv3
Multicast IGMP Snooping V2/V3
PIM Snooping
MLD Snooping
Multicast VLAN
Multicast VLAN+
Layer 2 ring network protocol STP/RSTP/MSTP/PVST/PVST+
STP Root Protection
Smart Link
RRPP
G.8032 ERPS (Ethernet Ring Protection Switching)
ACL Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses,
Time range-based ACL
VLAN-based ACL
Bidirectional ACL
QoS Port rate limit (receiving and transmitting)
Packet redirection
Committed access rate (CAR)
Eight output queues on each port
Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR
802.1p DSCP remarking
Traffic Statistic Sflow
Forwarding Wire-speed/Line-rate architecture
Mirroring Port mirroring
Traffic mirroring
RSPAN
Security Hierarchical user management and password protection
AAA authentication support
RADIUS authentication
HWTACACS
SSH2.0
Port isolation
802.1X authentication, centralized MAC authentication
Port security
IP Source Guard
HTTPs
EAD
Management and maintenance Loading and upgrading through XModem/FTP/TFTP
Zero Touch Provisioning
Configuration through CLI, Telnet, and console port
SNMPv1/v2c/v3 and Web-based NMS
Restful
Remote monitoring (RMON ) alarm, event, and history recording
IMC NMS
System log, alarming based on severities, and output of debugging information
NTP
Ping, Tracert
NQA
Virtual cable test (VCT)
Device link detection protocol (DLDP)
Loopback-detection
Performance Specification
MAC address entries 8K
Static Mac address 1K
VLAN table 4094
VLAN interface 32
IPv4 routing entries 512
IPv4 ARP entries 128
IPv4 ACL entries 256
IPv4 multicast L2 entries 1000
IPv6 unicast routing entries 16
QOS forward queues 8
IPv6 ACL entries 256
IPv6 ND entries 64
Jumbo frame length 10000
MAX num in one link group 8
Link group num 124
48-Port GE + 4-Port SFP Layer 3 Switch H3C S5120V3-52P-LI
- Thương hiệu: H3C
- Mã số sản phẩm: S5120V3-52P-LI
- Tình trạng kho: Xin liên hệ
-
Xin liên hệ
