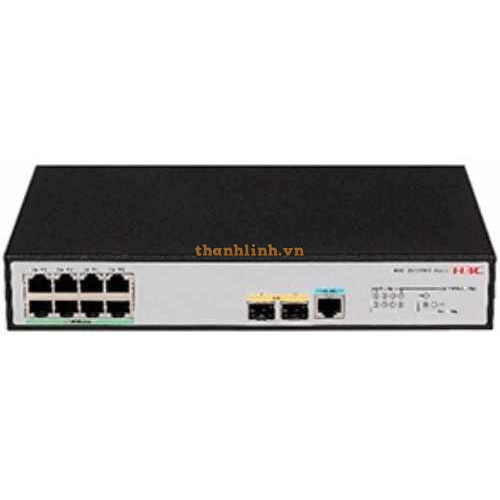

8-Port GE PoE + 2-Port SFP Layer 3 Switch H3C S5120V3-10P-PWR-LI

- Support 8 x 10/100/1000TX PoE , 2 x SFP and 1 console ports.

- Switching capacity: 20Gbps.

- Forwarding capacity: 15Mpps.

- CPU: 1 Core, 800MHz.

- Flash/SDRAM: 256MB/512MB.

- MAC address entries: 16K.

- VLAN table: 4094.

- Total PoE power capacity: 125W.

- PoE Ports Quantity:

+ 15.4W (802.3af): 8;

+ 30W (802.3at): 4.

- Dimensions (W × D × H): 330 × 230 × 43.6 mm.

- Weight: ≤3kg.

Specifications

Hardware Specifications

Switching capacity 20Gbps

Forwarding capacity 15Mpps

CPU 1 Core, 800MHz

Flash/SDRAM 256MB/512MB

Dimensions (W × D × H) 330×230×43.6 mm

Weight ≤ 3 kg

Management port 1 console port

Networking interface 8*10/100/1000TX+ 2*SFP

Maximum Stacking bandwidth 16Gbps

Maximum stacking num 9

Port Surge 6KV

Input voltage AC: The rated voltage range is 100V to 240V, 50/60Hz

Total power consumption MIN:

AC: 14W

MAX:

AC: 156W (PoE 125W)

Fan number Fan-less

MTBF(Year) 117.08

MTTR(Hour) 1

Operating temperature -5℃ ~ 50℃(normal operating temperature)

-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)

-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)

Storage temperature -40℃ ~ 70℃

Relative humidity (non-condensing) 5% RH to 95% RH, non-condensing

Software Specifications

Port aggregation GE/10GE port aggregation

Dynamic aggregation

Static aggregation

Cross-device aggregation

Broadcast/Multicast/Unicast storm suppression Storm suppression based on port bandwidth percentage

Storm suppression based on PPS

Storm suppression based on BPS

Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression

Traffic control 802.3x traffic control and half-duplex backpressure

IRF2 Distributed device management, distributed link aggregation, and distributed resilient routing

Stacking through standard Ethernet interfaces

Local device stacking and remote device stacking

MAC address table Static MAC address

Blackhole MAC address

Setting the maximum number of port MAC addresses to be learned

VLAN Port-based VLAN

MAC-based VLAN

Protocol-based VLAN

QinQ and selective QinQ

VLAN mapping

Voice VLAN

MVRP

DHCP DHCP Client

DHCP Snooping

DHCP Snooping option82

DHCP Relay

DHCP Server

DHCP auto-config

VLAN interface Both IPv4 and IPv6 supported

ARP ARP Detection

ARP speed limit

IP routing Static routing

RIPv1/v2 and RIPng

OSPFv1/v2 and OSPFv3

Multicast IGMP Snooping V2/V3

PIM Snooping

MLD Snooping

Multicast VLAN

Multicast VLAN+

Layer 2 ring network protocol STP/RSTP/MSTP/PVST/PVST+

STP Root Protection

Smart Link

RRPP

G.8032 ERPS (Ethernet Ring Protection Switching)

ACL Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses,

Time range-based ACL

VLAN-based ACL

Bidirectional ACL

QoS Port rate limit (receiving and transmitting)

Packet redirection

Committed access rate (CAR)

Eight output queues on each port

Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR

802.1p DSCP remarking

Traffic Statistic Sflow

Forwarding Wire-speed/Line-rate architecture

Mirroring Port mirroring

Traffic mirroring

RSPAN

Security Hierarchical user management and password protection

AAA authentication support

RADIUS authentication

HWTACACS

SSH2.0

Port isolation

802.1X authentication, centralized MAC authentication

Port security

IP Source Guard

HTTPs

EAD

Management and maintenance Loading and upgrading through XModem/FTP/TFTP

Zero Touch Provisioning

Configuration through CLI, Telnet, and console port

SNMPv1/v2c/v3 and Web-based NMS

Restful

Remote monitoring (RMON ) alarm, event, and history recording

IMC NMS

System log, alarming based on severities, and output of debugging information

NTP

Ping, Tracert

NQA

Virtual cable test (VCT)

Device link detection protocol (DLDP)

Loopback-detection

Performance Specification

MAC address entries 16K

Static Mac address 1K

VLAN table 4094

VLAN interface 32

IPv4 routing entries 1024

IPv4 ARP entries 1024

IPv4 ACL entries 512

IPv4 multicast L2 entries 1000

IPv6 unicast routing entries 240

QOS forward queues 8

IPv6 ACL entries 256

IPv6 ND entries 240

Jumbo frame length 10000

MAX num in one link group 8

Link group num 124

PoE Power Capacity

Total PoE power capacity 125W

PoE Ports Quantity 15.4W (802.3af): 8

30W (802.3at): 4
