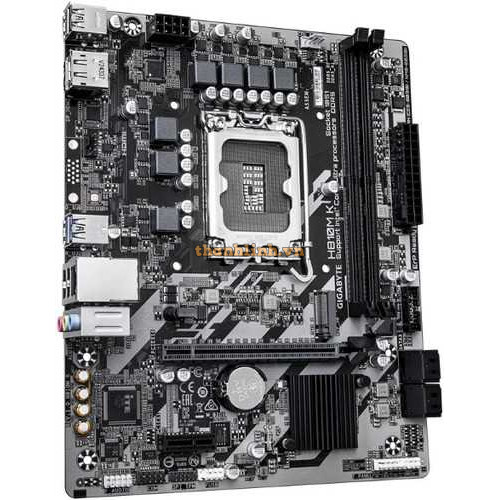

Part number : H810M K

Hãng sản xuất : Gigabyte

Bảo hành : 36 tháng

Loại sản phẩm : Mainboard

Kích thước : Micro ATX Form Factor; 22.6cm x 18.5cm

Âm thanh : Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Kiểu Sockets Supported : LGA1851 socket: Support for Intel® Core™ Ultra Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Khe mở rộng : CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Chipset : Intel® H810 Express Chipset

Lưu trữ : Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB : Chipset:

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Cổng kết nối bên trong : 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Clear CMOS jumper

Cổng I/O phía sau : 1 x DisplayPort (Note)

1 x HDMI port (Note)

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

(Note) Actual support may vary by CPU.

LAN : Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Đồ họa : Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz

* Support for DisplayPort 2.1 version.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Operating System Support : Support for Windows 11 64-bit

Support for Windows 10 64-bit

* The Intel® NPU driver is only supported on Windows 11.

Điều khiển I/O : iTE® I/O Controller Chip

BIOS : 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Kiểu bộ nhớ : Support for DDR5 6400/5600 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
