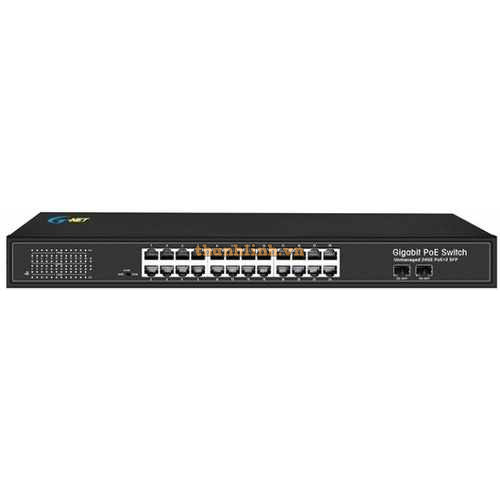

24-Port 10/100/1000Base-TX PoE Switch G-NET GX-PES-2GX24GP-SFP

- G-NET GX-PES-2GX24GP-SFP provides 24 x 10/100/1000Base-TX PoE ports with 2 x 1000Base-FX SFP ports for uplink. The PoE port supports IEEE802.3af/at PoE standards, each PoE port can max supply up to 30W power. It can automatically detect and supply power for the IEEE 802.3af/at compliant Powered Device, like IP camera, IP phone, wireless AP, etc. To the connected devices which not support PoE, it will auto stop supplying power. It also supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x standard with 10/100/1000M, full/half-duplex, and MDI/MDI-X auto negotiation, all ports support wire speed switch, jumbo frame tra nsmission. It is a reliable and economic choice for your security system, electronic power system and traffic system.

- Support 24x10/100/1000Base-TX PoE ports and 2x1000Base-FX SFP ports for uplink.

- Support IEEE802.3af, each port power supply: 15.4W (Max).

- Support IEEE802.3at, each port power supply: 30W (Max).

- Each PoE port supports to auto detect and supply power for the IEEE 802.3af/at compliant PD, auto power supply/power cutting.

- PoE Pin Assignment: 1/2+, 3/6-(End-Span).

- Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard.

- Plug and play, 10/100M, Full/Half duplex mode, non-blocking forwarding, MDI/MDI-X auto negotiation.

- All ports support exchange at wirespeed.

- Perfect protection mechanism as lightning protection, over-current, over-voltage, electrical surge and short circuit.

- Each port is equipped with independent circuits and fuses, which can ensure the normal operation of other ports even if individual circuits fail.

- LED indicators monitor working status, supporting simple trouble shooting.

- Built-in fan for cooling.

- 1U Rack Mounted or Desktop, easy to install and use.
