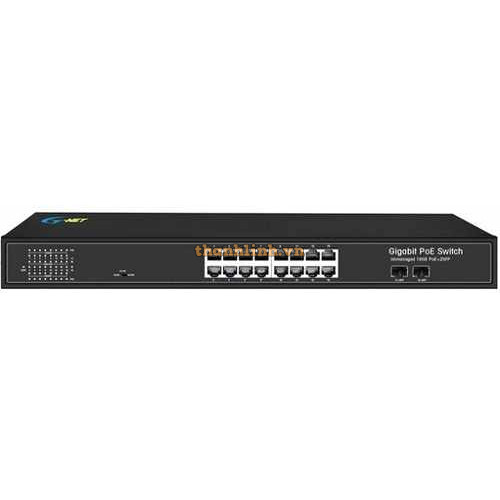

16-Port 10/100/1000Base-TX PoE Switch G-NET GX-PES-2GX16GP-SFP

- Support 16 x 10/100/1000Base-TX PoE ports and 2 x 1000Base-FX SFP ports for uplink.

- Total power: 300W.

- Support IEEE802.3af, each port power supply: 15.4W (Max).

- Support IEEE802.3at, each port power supply: 30W (Max).

- Each PoE port supports to auto detect and supply power for the IEEE 802.3af/at compliant PD, auto power supply/power cutting.

- PoE Pin Assignment: 1/2+, 3/6-(End-Span).

- Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard.

- Plug and play, 10/100M, Full/Half duplex mode, non-blocking forwarding, MDI/MDI-X auto negotiation.

- All ports support exchange at wirespeed.

- Perfect protection mechanism as lightning protection, over-current, over-voltage, electrical surge and short circuit.

- Each port is equipped with independent circuits and fuses, which can ensure the normal operation of other ports even if individual circuits fail.

- LED indicators monitor working status, supporting simple trouble shooting.

- Built-in fan for cooling.

- 1U Rack Mounted or Desktop, easy to install and use.
