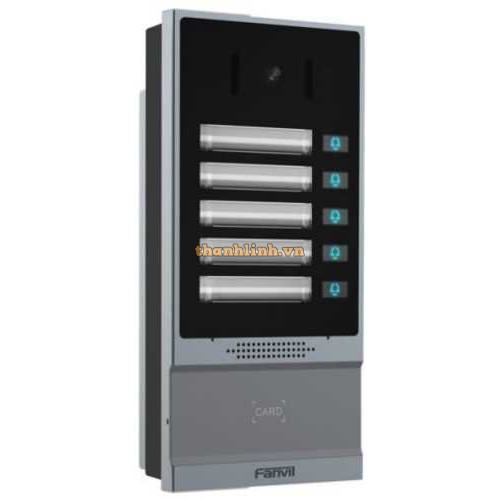

IP SIP Video Door Phone Fanvil i63

- With high protection level of IP66 and IK07, wide temperature range from -40℃ to 70℃, it can work perfectly in most outdoor environments.

- Support to open the door with RFID/IC cards, NFC, indoor switch, remote DTMF, Timed open door.

- Aluminum alloy design and 5 speed-dial buttons.

- Built in 2M pixels wide-angle camera: 120º(H), 60º(V) with infrared night-vision feature.

- Fitted with a tamper switch that detects unauthorized opening of the device itself.

- Compatible with SIP and ONVIF protocols.

- Built-in 3 short-in detect ports and 2 short-out control ports, can be integrated with induction loop antenna.

- Built-in maximum 128GB capacity TF card slot for image storage.

- HD voice speech quality with built-in 2.5W speaker and Acoustic Echo Canceller.

Specifications

Generic - 2 SIP lines

- Video intercom

- IP address announcement in English

- Programmable DSS key

- RS485 port: Support

- Wiegand port: Support

- Switch signal input and output

- Door control in and out

- Line-out for induction loop antenna: Support

- Support TF card

- PoE enabled

- Open the door operation: DTMF, RFID card, NFC, indoor switch, Time open door

- RFID cards (support 10,000)

- Door open records (support 200,000)

Device Functions - Auto-answering

- Programmable DSS keys

- Through button or web page volume adjustment

- Network time synchronization

- Time Plan (task management)

- Dynamic multicast function

- SIP call multicast function

- HTTP API

- Action URL / Active URI

Call Functions - Call out / answer / reject

- Call waiting

- Intercom, Multicast

- Speed dial

- Anonymous call (Hide caller ID)

Audio - Narrowband codec: G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K

- Wideband codec: G.722, Opus

- Full-duplex hands-free speakerphone with AEC

- DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)

Video - Sensor: 1/2.9 inch color CMOS

- Pixels: 2 Mega

- Video coding: H.264

- Motion detection

- Resolution:

+ Main stream 1080P@30fps

+ Sub stream VGA@30fps

- High intensity IR LEDs for picture lighting during dark hours with

internal light sensor

- Viewing angle:

+ Diagonal: 141°

+ Horizontal: 120°

+ Vertical: 60

Network - Physical: 10/100 Mbps Ethernet

- IP mode:IPv4/IPv6/IPv4&IPv6

- IP configuration: Static IP / DHCP / PPPoE

- VPN: L2TP / OpenVPN

- VLAN

Protocols - SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS

- RTP/RTCP/SRTP

- STUN

- DHCP

- IPv6

- PPPoE

- L2TP

- OpenVPN

- SNTP

- FTP/TFTP

- HTTP/HTTPS

- TR-069

Deployment & Management - Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069

- Web management portal

- Web-based packet dump

- Configuration export / import

- Firmware upgrade

- Syslog

Physical Specifications - Speed dial button x 5

- RJ45 port x1: connect the network

+ PoE enabled

- Short-in detect port x 3

+ Port: Terminal socket

- Short-out control port x2 (built-in relay)

+ Relay: MAX DC30V / 2A, AC125V / 0.5A

+ Port: Terminal socket

- Tamper switch x1

- TF card slot x1: connect TF card, up to 128GB

- RF Card Reader:125KHz&13.56MHz

- RS485: Support

- Wiegand Port: In/Out configurable, Wiegand in by default

- Line-out:support, for induction loop antenna

- DC port x1: DC power input

+ DC power input: DC12V/1A

+ Port: Terminal socket

- PoE level: 802.3af Class 3

- Protection level:IP66 and IK07

- Housing material: Aluminum

- Installation: Wall-mounted &Flush-mounted()

- Working temperature: -40℃~ 70℃

- Storage temperature: - 40℃~ 70℃

- Working humidity: 10~95%

- Device dimensions: 177.4x88x36.15 mm

- Gift box dimensions: 220x123x65 mm

- Outer CTN dimensions: 463x350x266 mm(20 PCS)

- Sản xuất tại Trung Quốc.

- Bảo hành: 12 tháng.
