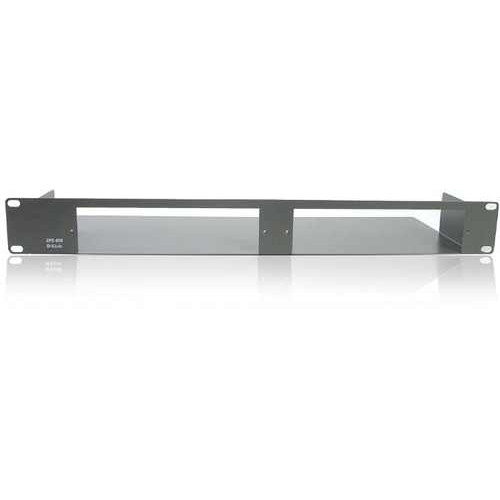

Chassis of Redundant Power Supply Unit D-Link DPS-800

- The DPS-800 chassis can hold two DPS-200, DPS-300 or DPS-500/500DC and is useful for adding a few RPS to the equipment rack. Using the chassis, users can save space, while their cabling will look neat. The chassis are not equipped with any power supply of their own. All redundant power supply units installed in the chassis will connect directly to their power source. As they are independent units, they are hot-swappable when used with the chassis.

Specifications

Model DPS-800

Hold Up Time 16ms at Max Load and 115VAC Input at 60Hz Output Drop Down to 95% Voltage

Efficiency 75% Min. At Max Load and 115VAC Input

AC Input Voltage Rating 100VAC to 240VAC

AC Input Voltage Range 90VAC to 264VAC

AC Input Frequency 47Hz to 63Hz

Max. In-Rush Current 30A Max @ 115VAC, 60A Max @ 230VAC at 25° Ambient Cold Start

Output Voltage +12V

Min. Load Current 0.5A

Max Load Current 5.0A

Line Regulation ± 2% Measured Output Load From ±10% Rated Load

Dimensions RPSU (WxDxH) (6.69 x 7.48 x 1.77 inches) RPSU Units

Dimensions Chassis (WxDxH) (19.06 x 7.09 x 2.17 inches) DPS-800 Chassis

Operating Temperature 0° - 40°C

Operating Humidity 20% to 80% RH, Non-Condensing

- Bảo hành 12 tháng.
