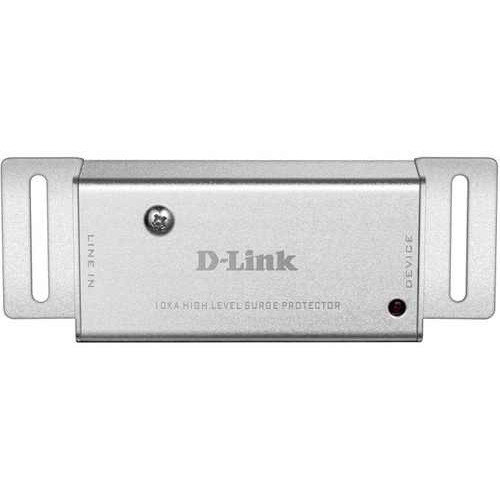

PoE Lightning Protector D-Link DPE-SP110I

High Standard of Protection

- 10 kA impulse discharge current

Easy to Use

- Suitable for all PoE equipment and Ethernet devices

- Plug and Play, no software required

- 10/100/1000 Mbps connection up to 100 meters

- Compact and easy-to-install design

- Failure indicator to notify you when the device needs replacement

Protection Mode

- Common mode up to 10 kA

- Differential mode up to 1 kA

Surge Compliance

- IEC 61643-21

- IEC 61000-4-5

- ITU-T K-Series

PoE Passthrough

- Supports IEEE 802.3af/at

- Supports up to 60 W PoE passthrough

- Protects all four pairs of the Ethernet cable

Specifications

Model DPE-SP110I

Interface

Line In Port (Line IN) 1 x RJ-45 port (power + data in)

Compatible with 10/100/1000BASE-T

PoE Passthrough

Line Out Port (Device) 1 x RJ-45 port (power + data out)

Compatible with 10/100/1000BASE-T

PoE Passthrough

Performance

Maximum Discharge Current 10 kA

Common Mode (Line-to-Ground) Protection 20 kV (10/700 us)

10 kA (8/20 us)

Differential Mode (Line-to-Line) Protection 6 kV (10/700 us)

1 kA (8/20 us)

Clamping Voltage (Line-to-Ground) 600 V at 10 kA

Clamping Voltage (Line-to-Line) 20 V at 1 kA

Surge Protection Response Time 5ns

Ethernet PoE/Data Line Added protection for 10/100/1000 Mbps Ethernet ports

Added protection for all RJ-45 8-pin assignments

Added protection for all four pairs of all types of Ethernet cables including Cat 5, Cat 5E, and Cat 6
