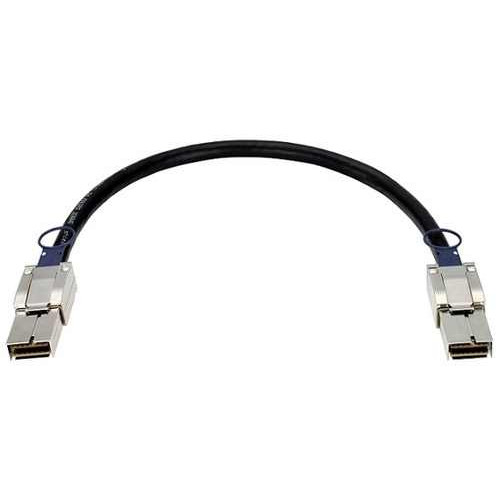

Cáp kết nối 120G CXP to CXP 50cm D-Link DEM-CB50CXP

-120G CXP to CXP 50cm Direct Attach Cable (For use on DXS-3600-EM-Stack module).

-The DEM-CB50CXP 120G Passive CXP Twinaxial Direct Attach Cable carries 12 duplex channels of 10-Gbps data, for up to 120Gbps in total, making it one of the fastest and highest-density interconnection solutions on the market today.

-The DEM-CB50CXP is designed to support connections for the new industry-leading 100Gbps Gigabit Ethernet. The DEM-CB50CXP is intended to be used for physical stacking with the D-Link DXS-3600-32S switch’s DXS-3600-EM-Stack module to provide you best performance and reliability.

Ideal for High-Bandwidth Operations

-The 120G Passive CXP Twinaxial Direct Attach Cable supports speeds of up to 10Gbps over 12 channels, for up to 120Gbps in total. It can be used for InfniBand 12X QDR serial links, which provide high-speed, high-efficiency, and low-latency connections. This makes it an optimal solution for handling high bandwidth transmission for physical stacking usage.

Versatile Configuration

-The 120G Passive CXP Twinaxial Direct Attach Cable is designed to accommodate standard, ganged or stacked connector configurations in demanding high-density deployments. The cable is hot-pluggable, meaning it could be inserted and removed from a device without needing to power down the device. The cable features a latching mechanism that allows for easy removal.

Technical Specifications

Device Rate 120Gbps Gigabit Ethernet

Connector Type CXP Cable Assembly

Wire AWG 30 AWG

Length 0.5m

Minimum Cable Bend Radius 49mm

Cable Characteristic Impedance 100Ω

Voltage 30V AC

Current 0.5A

Certifications SFP MSA (Multi-Source Agreement), EIA-364-1000.01, EIA 364, UL 94

-Bảo hành: 90 ngày.
