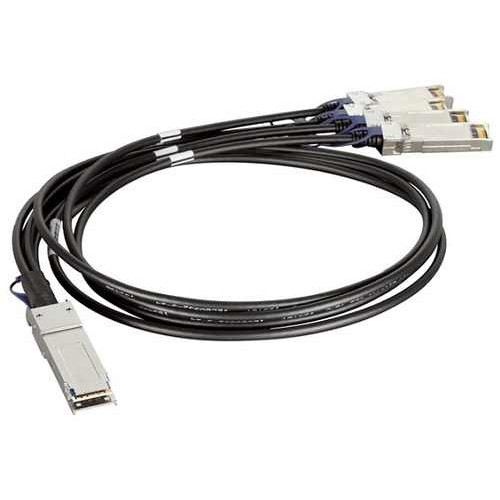

Cáp kết nối 40G QSFP+ to 4-port 10G SFP+ 1 mét D-Link DEM-CB100QXS-4XS

-40G QSFP+ to 4-port 10G SFP+ 1m Direct Attach Cable (For use on DXS-3600-EM-4QXS module).

-The 40G Passive QSFP+ Twinaxial Direct Attach Cable is a high performance, high bandwidth and cost-effective connection solution that supports 40G Gigabit Ethernet.

-The 40G Passive QSFP+ Twinaxial Direct Attach Cable is designed to support high-density connections for switches with 40G interface, much faster than SFP+.

-The DEM-CB100QXS-4XS QSFP+ to 4X SFP+ one-meter cable features a QSFP+ connector on one end, and four SFP+ connectors on the other end, allowing it to connect to up to four 10G servers.

-The 40G Passive QSFP+ Twinaxial Direct Attach Cable is certified to be compatible with D-Link products to provide you best performance and reliability.

Ideal for High-Bandwidth Operations

-The 40G Passive QSFP+ Twinaxial Direct Attach Cable supports speeds of up to 40Gbps, while having lower crosstalk and power consumption than other cables.

-This makes it an optimal solution for handling high bandwidth transmission within short distances such as within a rack or between racks inside energy-efficient data centers.

Quad Small Form-factor Pluggable Plus Format

-The D-Link 40G Passive QSFP+ Twinaxial Direct Attach Cable uses Quad Small Form-factor Pluggable Plus format (QSFP+) connectors, which integrate four transmitting and four receiving channels.

-The QSFP+ cable assemblies can replace four standard SFP+ cable assemblies, resulting in higher port density, cost efficiency, and a reduction in power savings compared to standard SFP+.

Save on Costs

-The D-Link 40G Passive QSFP+ Twinaxial Direct Attach Cable features QSFP+ connectors on both ends, thus eliminating the need for expensive QSFP+ transceivers.

-This makes it more cost-effective than fiber cables which must use QSFP+ transceivers.

Technical Specifications

General Device Rate: 40Gbps

Connector Type: QSFP+ Cable Assembly

Wire AWG: 30AWG

Minimum Cable Bend Radius 23.5mm

Cable Characteristic Impedance 100Ω

Voltage 30VAC

Current 0.5A

Temperature Operating: -40 to 85°C

Certifications SFP MSA (Multi-Source Agreement)

EIA-364-1000.01

SFF-8436

EIA 364

UL 94

SFF-8431

-Bảo hành: 90 ngày.
