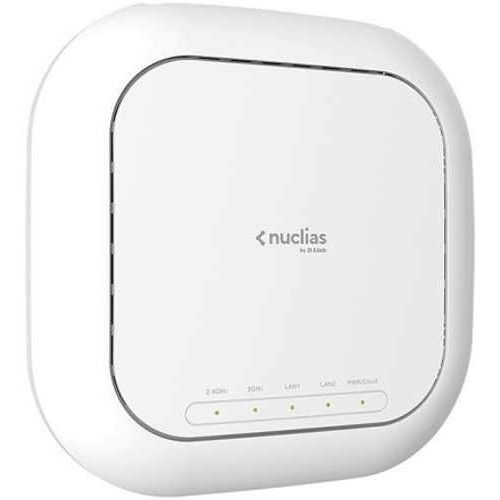

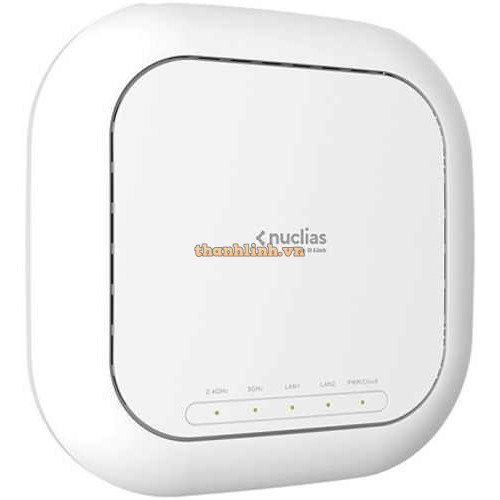

Nuclias Cloud-Managed Wave 2 Access Point D-Link DBA-2720P

- Centralized cloud-based management, with intuitive web and app-based interface.

- Slice through congestion with better handling of multiple connections thanks to IEEE 802.11ac Wave 2 wireless.

- Superior throughput with tri-band transfer speeds of up to 400 Mbps in the 2.4 GHz band and two 867 Mbps 5 GHz bands.

- Supports Power over Ethernet (PoE 802.3at) for simpler installation with less cable clutter.

- With Zero Touch Deployment, swift plug and play installation eliminates the need for on-site setup.

- Equipped with an integrated DHCP Server.

- Supports RADIUS client and Cipher negotiation.

- Supports WPA3™ - the latest WiFi security for more protection.

- Supports Link Aggregation for an overall more stable network.

- PoE Injector and Power Adapter are not included.

Specifications

Model DBA-2720P

General

Interface 2 x 10/100/1000 Mbps Ethernet port

1 x RJ45 Console port

IEEE 802.11a/b/g/n/ac Wave 2 wireless

Standards IEEE 802.11a/b/n/g/ac Wave 2

IEEE 802.3az Energy-Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet (PoE)

IEEE 802.3i/u/ab

IEEE 802.3x Flow Control

Data Signal Rate 2.4 GHz: Up to 400 Mbps

5 GHz(1): Up to 867 Mbps

5 GHz(2): Up to 867 Mbps

Antenna Internal omnidirectional antennas

2.4 GHz: 3 dBi

5 GHz(1): 4 dBi

5 GHz(2): 4 dBi

Maximum Output Power 2.4 GHz: 26 dBm

5 GHz(1): 26 dBm

5 GHz(2): 26 dBm

Functionality

Security WPA3-Personal/Enterprise

WPA2-Personal/Enterprise

WPA-Personal/Enterprise

MAC address filtering

SSID isolation

Guest isolation

Captive portal

Station isolation

Maximum SSIDs Supports up to 24 SSIDs per device: Up to 8 SSIDs per

wireless band

Physical

Power Input IEEE 802.3at Power over Ethernet (PoE) on LAN 1

Power adapter: 12 V DC, 2.5 A

Power Consumption PoE: 20.16 W

Power adapter: 18.96 W
