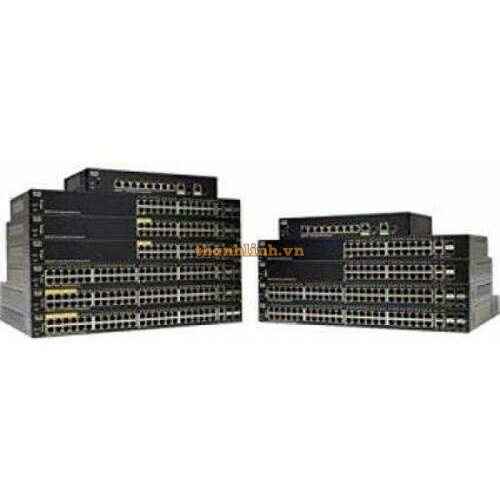

48-port 10/100 PoE Managed Switch CISCO SF350-48P-K9-EU

- 48-port 10/100 PoE+ ports with 382W power budget, 2 SFP slots, 2 combo mini-GBIC ports.

- Performance: Switching capacity 17.6 Gbps, Forwarding rate 13.1 mpps wire-speed performance.

- Layer 2: Port grouping up to 8 groups, up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation.

- Layer 3: IPv4 routing Wirespeed routing of IPv4 packets up to 1K static routes and up to 128 IP interfaces, Classless Interdomain Routing (CIDR) Support for CIDR.

- PoE: Power Dedicated to PoE: 382 W, Number of Ports That Support PoE: 48.

- QoS (Quality of Service): Priority levels 8 hardware queues, Scheduling Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service (802.1p/CoS).

Đặc tính kỹ thuật

Model SF350-48P-K9-EU

Performance

Switching capacity and forwarding rate Capacity in Millions of Packets per Second (mpps) (64-byte packets): 13.09

All switches are wire speed and nonblocking Switching Capacity in Gigabits per Second (Gbps): 17.6

USB slot For file-management purposes

Layer 2 Switching

Spanning Tree Protocol Standard 802.1d Spanning Tree support

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

8 instances are supported

Multiple Spanning Tree instances using 802.1s (MSTP)

Port grouping Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP): Up to 8 groups, Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN Support for up to 4096 VLANs simultaneously

Port-based and 802.1Q tag-based VLANs

MAC-based VLAN

Management VLAN

Private VLAN Edge (PVE), also known as protected ports, with multiple uplinksv

Guest VLAN

Unauthenticated VLAN

Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication

CPE VLAN

Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

Auto voice capabilities deliver networkwide zero-touch deployment of voice endpoints and call control devices
