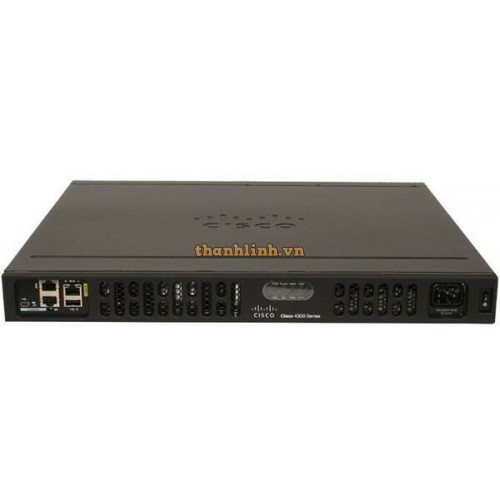

Router Integrated ISR 4331 Cisco ISR4331/K9

- Cisco ISR 4331 (3GE, 2NIM, 1SM, 4G FLASH, 4G DRAM, IPB).

- Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single-and double-wide service modules provides flexibility in deployment options.

Specifications

Product Code Cisco ISR4331/K9

Aggregate Throughput 100 Mbps to 300 Mbps

Total onboard WAN or LAN 10/100/1000 ports 3

RJ-45-based ports 2

SFP-based ports 2

Enhanced service-module slots 1

NIM slots 2

OIR (all I/O modules) Yes

Onboard ISC slot 1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC)

DRAM (Combined control/services/data planes) 4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 16 GB

Default flash memory 4 GB

Maximum flash memory 16 GB

External USB 2.0 slots (type A) 1

USB console port -type B mini (up to 115.2 kbps) 1

Serial console port - RJ45 (up to 115.2 kbps) 1

Serial auxiliary port - RJ45 (up to 115.2 kbps) 1

Power-supply options Internal: AC and PoE

AC input voltage 100 to 240 VAC autoranging

AC input frequency 47 to 63 Hz

AC input current range, AC power supply (maximum) 3 to 1.3A

AC input surge current 60 A peak and less than 5 Arms per half cycle

Typical power (no modules) (watts) 42

Maximum power with AC power supply (watts) 250

Maximum power with PoE power supply (platform only) (watts) 530

Maximum endpoint PoE power available from PoE power supply (watts) 250

- Bảo hành: 12 tháng.
