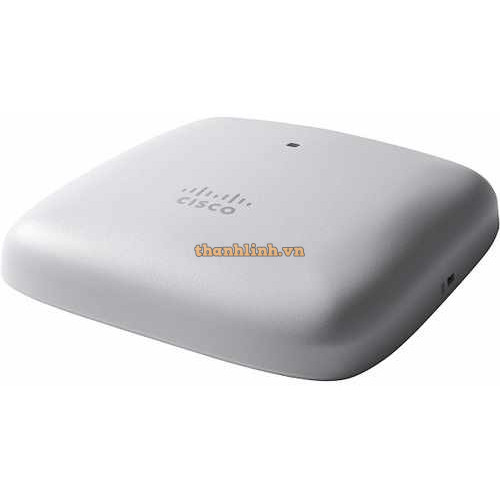

Wireless Access Point CISCO CBW240AC

- Wireless Access Point hoạt động theo chuẩn 802.11ac Wave 2, phát hai băng tần (2.4GHz và 5GHz) đồng thời, cho tốc độ wifi lên đến 2Gbps (tùy thuộc vào card wireless của thiết bị đầu cuối).

- Cổng kết nồi gồm 2 x Gigabit (10/100/1000BASE-T autosensing), Power over Ethernet (PoE).

- 4x4 Downlink (DL) MU-MIMO with four spatial streams, up to 1733Mbps; Simplified management; Mesh technology support; Flexible deployment; Cisco Business Mobile app.

- Hỗ trợ lên đến 400 users kết nối (trên 2 tần số).

- MESH có thể mở rộng đến 25 Access Point, up to 8 hops.

- Độ phủ sóng của mỗi AP ~ 279m2.

- Thiết kế treo tường hoặc áp trần.

Thông số kỹ thuật

Authentication and security Wi-Fi Protected Access 2 (WPA2 ); WPA3 is coming in a future release

802.1X, Remote Authentication Dial-In User Service (RADIUS); Authentication, Authorization, and Accounting (AAA)

Segmentation via VLANs (up to 16)

802.11r and 802.11i

Guest network can also authenticate against: Google and Facebook

Maximum clients Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point, or 1000 in a system

Maximum # of access points 50

Recommended up to 25

Max # of mesh extenders Maximum number of associated Cisco Business mesh extenders: 25 per access point, up to 8 hops

802.11ac 4x4 Downlink (DL) MU-MIMO with four spatial streams, up to 1733 Mbps

802.11ac beamforming

20, 40, 80 MHz channels

Dynamic Frequency Selection (DFS)

Integrated antenna 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional

5 GHz, peak gain 5 dBi, internal antenna, omnidirectional

Ethernet ports Authentication with 802.1X or MAC filtered

Dynamic VLAN or per port

Interfaces 2 x Gigabit (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)

RJ-45 console port (not functional)

USB 2.0 (not functional)

Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H) 7 x 7 x 1.5 in

Weight 0.43 kg

- Bảo hành: 12 tháng.
