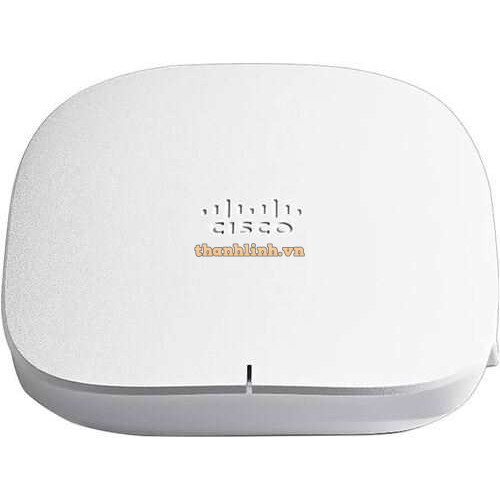

150AX Wi-Fi 6 Access Point CISCO CBW150AX-S

- Wi-Fi 6 (802.11ax), 2.4GHz/5GHz (Dual-Band).

- Up to 1.488Gb/s throughput.

- Interfaces: 1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE).

- System: 1GB DRAM, 512MB flash; 1GHz quad core processor.

Thông số kỹ thuật

Authentication and security - Wi-Fi Protected Access - with WPA2 or WPA3, including WPA2-Entperprise authentication

- 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)

- Segmentation via VLANs (up to 16)

- 802.11r and 802.11i

- Guest network can also authenticate against a Social Login account: Google and Facebook

Maximum clients Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system

Maximum # of Access Points 50

Recommended up to 25

Max # of Mesh Extenders Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops

802.11ax - 2x2 downlink MU-MIMO with two spatial streams

- Uplink/downlink OFDMA

- TWT

- BSS coloring

- MRC

- 802.11ax beamforming

- 20-, 40-, 80- channels

- PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz)

- Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

- 802.11 DFS

- CSD support

- WPA3 support

802.11ac - 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz

- 20-, 40-, and 80-MHz channels

- Dynamic Frequency Selection (DFS)

Ethernet ports - Authentication with 802.1X or MAC filtered

- Dynamic VLAN or per port

- Traffic locally switched or tunneled back to Master AP

Data rates supported 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)

802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)

802.11ax data rates on 2.4 & 5GHz: 6.5 to 1200 Mbps (MCS0-MCS11)
