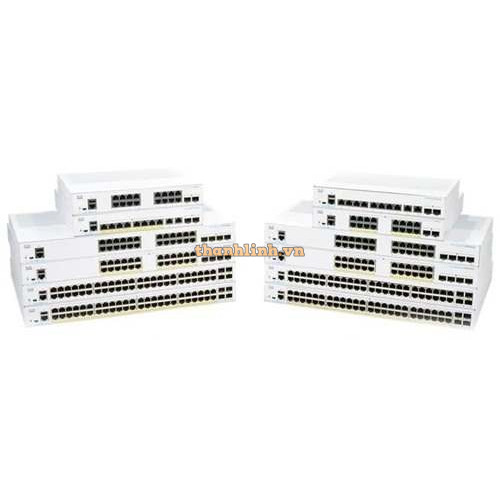

16-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS250-16P-2G-EU

- Support 16 Gigabit PoE+ ports with 120W power budget and 2 Gigabit SFP ports.

- Switching capacity: 36Gbps.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K byte.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256MB.

- CPU: 800MHz ARM.

- CPU memory: 512MB.

- Dimensions (W x D x H): 268 x 297 x 44 mm.

- Weight: 2.38kg.

Đặc tính kỹ thuật

Model CBS250-16P-2G-EU

Performance

Capacity in millions of packets per second (mpps) (64-byte packets) 26.78 mpps

Switching capacity 36Gbps

General

Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K bytes

MAC table 8K addresses

Hardware

Total system ports 18 Gigabit Ethernet

RJ-45 ports 16 Gigabit Ethernet

Combo ports (RJ-45 + SFP) 2 SFP

Number of ports that support PoE 16

Power dedicated to PoE 120W

Console port Cisco Standard mini USB Type-B/RJ45 console port

USB slot USB Type-A slot on the front panel of the switch for easy file and image management

Buttons Reset button

Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T

LEDs System, Link/Act, PoE, Speed

Flash 256MB

CPU 800MHz ARM

DRAM 512 MB

Packet buffer 1.5 MB

Power consumption (worst case)

System power consumption 110V=24.51W

220V=25.01W

Power consumption (with PoE) 110V=156.4W

220V=154.5W

Heat dissipation (BTU/hr) 536.05

Environmental
