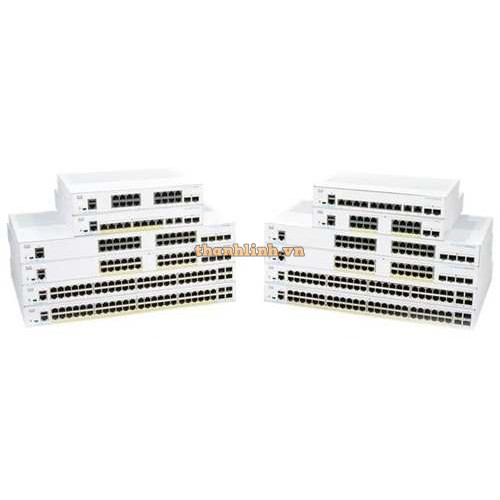

24-Port Gigabit Ethernet + 2-port SFP PoE Unmanaged Switch CISCO CBS110-24PP-EU

- Support 24-port Gigabit Ethernet (12 support PoE with 100W power budget) and 2-port Gigabit SFP (combo with 2 10/100/1000 ports).

- Head-of-line (HOL) blocking: HOL blocking prevention.

- Jumbo frame: 9216 bytes.

- Quality of Service (QoS): 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR).

- Cabling type: Category 5e or better.

- Mounting options: Desktop, wall-mount or rack mount.

- Flash: 8MB.

- CPU: 400MHz ARM.

- CPU memory: 64MB.

- Dimensions (W x D x H): 440 x 203 x 44 mm.

- Weight: 2.98kg.

Đặc tính kỹ thuật

Model CBS110-24PP-EU

Performance

Capacity in millions of packets per second (64-byte packets) 35.7 mpps

Switching capacity 48 Gbps

General

Head-of-line (HOL) blocking HOL blocking prevention

MAC table 8K addresses

Jumbo frame 9216 bytes

Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)

Loop detection Helps discover loops in the network to avoid broadcast storms

Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts

Media-dependent interface Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)

Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet

Hardware

Total system ports 24 Gigabit Ethernet

RJ-45 ports 24 Gigabit Ethernet

Combo ports (RJ-45 + Small Form-factor Pluggable [SFP]) 2 SFP (combo with 2 Gigabit Ethernet)

Number of ports that support PoE 12

Power dedicated to PoE 100W

LEDs Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE.
