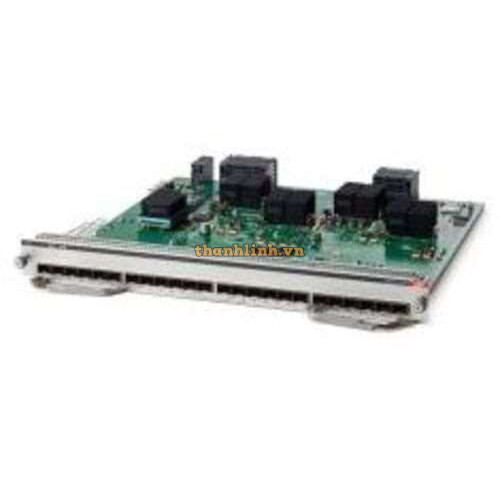

Thiết bị mạng Cisco Catalyst 9400 Series 24-Port SFP/SFP+ Module (C9400-LC-24XS)

Description

24 Port SFP/SFP+ 10 Gigabit Ethernet Module. These ports can be interchangeably used as 1G and 10G ports.

Hardware ready for IEEE 1588/802.1as— A Precision Time Protocol (PTP) used for time synchronization across the network for video and audio applications.

Bandwidth is allocated across four 6-port groups, providing 20 Gbps per port group.

Has a built-in, front-facing, passive RFID tag that uses Ultra High Frequency (UHF) RFID technology and requires an RFID reader with compatible software. It provides auto-identification capabilities for asset management and tracking. The RFID tags are compatible with the Generation 2 GS1 EPC Global Standard and are ISO 18000-6C compliant. They operate in the 860- to 960-MHz UHF band. For more information, see Radio Frequency Identification (RFID) on Cisco Catalyst 9000 Family Switches.

Per Slot Bandwidth

Per slot bandwidth is enabled by the software and the supervisor module:

80Gbps with C9400-SUP-1.

120 Gbps for C9400-SUP-1XL on a seven-slot chassis.

Minimum / Maximum Port Density8

Catalyst 9404R Switch—24/48

Catalyst 9407R Switch—24/120
